30cm Light Curtain Sensor For Industrial Doors
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Aluminum Alloy + PC | IP Rating | IP65 |
|---|---|---|---|
| Beams | 4-Beams | Height | 30cm Height |
| Detection Range | 20m | Power Supply | DC12-24V |
| Working Temperature | -30 To 60 ℃ | Package Size | 26.8*32.2*480mm |
| Highlight | ip65 curtain light sensor,ip65 light curtain sensor,dc12-24v curtain light sensor |
||
Product Description

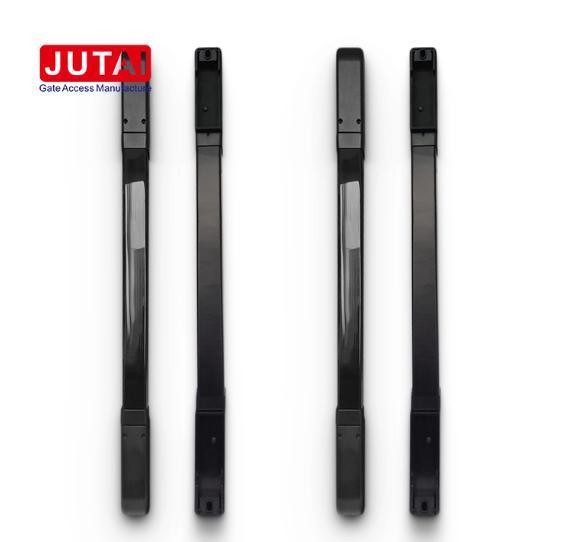

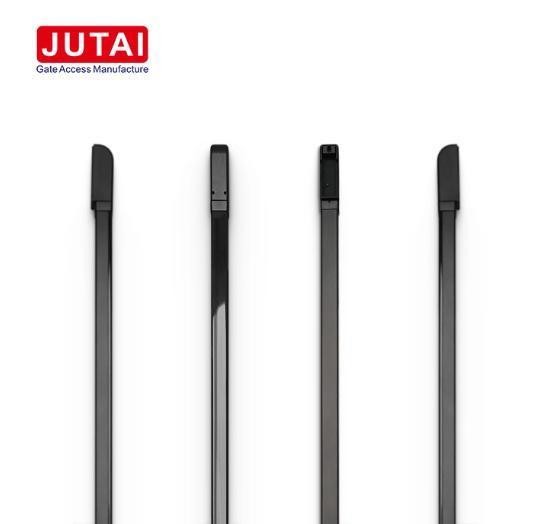

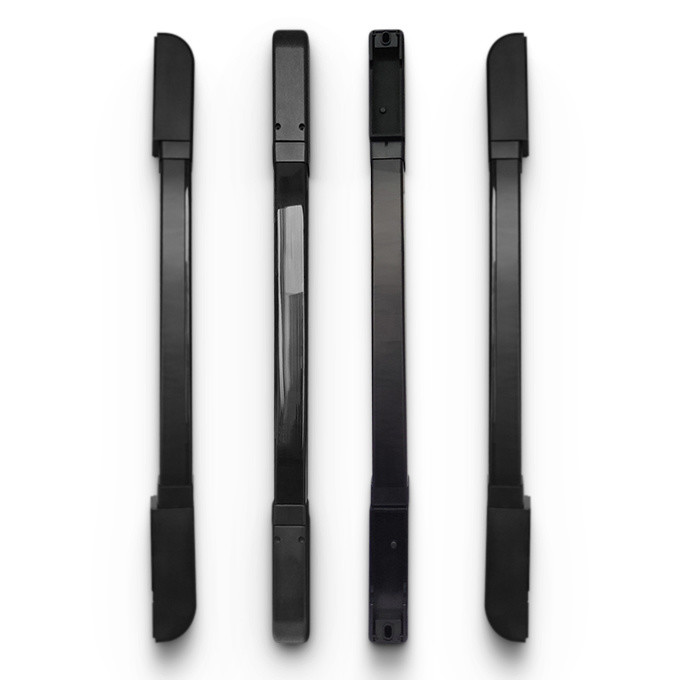

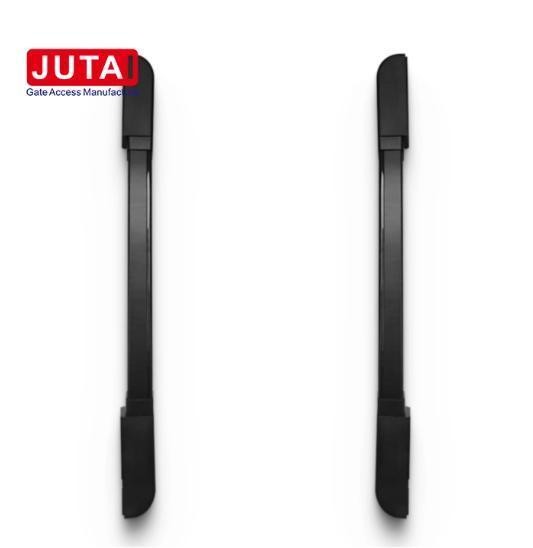

30cm Light Curtain Sensor Customized for Industrial Doors
Description: Our Infrared Fence Integrated High-Efficiency Alarm System provides independent alarm triggering without the need for an alarm host. It ensures reliable detection with stable infrared beams and offers long-term durability with sealed waterproof and dustproof design.
Key Features:
- Stable Infrared Beam: Utilizes high-quality imported industrial-grade infrared emitters for stable beams and extended service life.
- Sealed Waterproof and Dustproof: Resistant to wind and rain, ensuring reliable outdoor performance.
- Accurate Detection with Anti-False Alarm: Prevents false alarms caused by small animals or debris. Signals are triggered only after a single beam blockage for 2 seconds or immediate triggering if two or more adjacent beams are blocked (adjustable by users).
- 180° Full Directional Rotation: Equipped with a 180° omni-directional rotation focus for easy and flexible installation.
- Anti-Dismantling Function: Triggers an alarm if the infrared grating is tampered with or if the cable is cut.
Applications:
- Alarm: Ideal for fences, balconies, patios, backyard or pool entries, private entryways, or corridors.
- Gate Safety: Suitable for automatic gates, barriers, sliding doors, and other safety applications.
| Height | 30cm/100cm/200cm |
| Beam Group | 4/8/16/32 |
| OEM | YES |
| Specification | Value |
|---|---|
| Number of Beams | 4/8 (or customizable options) |
| Height | 30cm, 100cm, 200cm (or customizable options) |
| Detection Distance | 15 meters |
| Working Voltage | DC 12-24V |
| Transmitter Operating Current | <50mA |
| Receiver Operating Current | <50mA |
| Response Time | 50/100/150/200ms (adjustable) |
| Trigger Time | Block a beam of light, trigger in 2 seconds; block adjacent 2 beams or more, trigger immediately |
| Induction Method | Single beam trigger or Multi-beam trigger (selectable) |
| Working Temperature | -20°C to 60°C |
| Ambient Temperature | Up to 90% RH (no condensation) |
| Alarm Output | Wired Output, Relay Output 30 VDC @ 2A, 125VAC @ 1A |
| Output Way (Wired Model) | Wired transmission (NO/NC) |
| Rotation Angle | 180 degrees horizontal |
| IP Level | IP65 |
| Material | Aluminum Alloy and PC Plastic |
