Anti-Clone 2.4GHz Long Range RFID Active Reader with 18dBi Gain and Adjustable Reading Distance Powered by 32-Bit ARM Cortex-M3
Product Details
| Reading Distance | 1 To 30 Meters Adjustable | Power Supply | 32-Bit Arm Cortex-M3 |
|---|---|---|---|
| Working Current | ≤100mA | Operating Temperature | -20~+85℃ |
| Relative Humidity | ≤90% | Gain | 18dBi |
| Receiving Sensitivity | -90dBm | Working Voltage | AC250V-3A/DC24V-2A |
| Copper Core Load Capacity | 1.36A | Specification | 18*18*5.2 Cm |
| Card Type | 2.45GHz Card | Interface | Serial Port, Wiegand |
| Highlight | 2.4GHz long range active rfid reader,Anti Clone 2.4GHz RFID Active Reader,RFID Active Reader Gain 18dBi |
||
Product Description
Anti Clone 2.4GHz Long Range RFID Active Reader Gain 18dBi
Product Overview
JUTAI Long Range 2.45G RFID Active Reader is a professional active reader system designed for non-stop parking and access control applications. The smart tags continuously output signals when near the active long-range reader, enabling seamless operation. Operating at 2.45G frequency, this RFID reader can penetrate walls and solar film with compatible smart tags.
As a specialized RFID manufacturer with over 5,000 units sold worldwide, we provide comprehensive solutions from design and development to production.
Applications
- Personal Management: Schools, sanatoriums, hospitals
- Commodity Flow Control and Tracking Systems
- Zone Tracking Management
- Elderly Apartment Personnel Location Solutions
Function Features
- High-performance 32-bit ARM Cortex-M3 core microcontroller
- Tag Identification Speed: 2000 tags/sec (sending by time)
- Tag Reading Capacity: 1000 tags/sec
- Tag Buffer Capacity: 1000 tags (anti-reread)
- 18dBi high-gain directional antenna
- Maximum Reading Distance: 120 meters
- Directional Capacity: 30:1
- Signal attenuator for adjustable reading distance (1 to 120 meters)
Technical Parameters
| Parameter | Specification |
|---|---|
| Processor | 32-bit ARM Cortex-M3 core microcontroller |
| Work Frequency | 72MHz |
| Reading Capacity | 1000 tags/sec |
| Buffer Capacity | 1000 tags (anti-reread) |
| Reading Distance | Maximum 120 meters |
| Attenuation Distance | 1 to 120 meters adjustable |
| Voltage | +12VDC (7-12VDC) |
| Frequency Range | 2.4GHz～2.480GHz |
| Work Temperature | -40℃～+85℃ (industrial-grade) |
| Communication Interface | WG26 WG34 WG36 WG44 RS232 RS485 |
| Power Angle | Horizontal 55°/Vertical 45° |
| Polarization Way | Vertical/Horizontal |
| Front to Back Ratio | ≥24dB |
| Dimension | 308*308*80mm |
System Highlights
- Wiegand 26/34 interface for easy integration with access control systems
- IP65 Waterproof Rating for all-weather operation
- Built-in lightning protection device
- Long-range reading capability through solar film
- Advanced anti-interference technology to prevent false operations
- Support for local anti-Passback function between reader units
- Maximum 26,000 users capacity
- 100,000 record storage capacity (cycle/lost)
- 64 different time zone groups for flexible scheduling
- CCTV system integration with image compare function
- Ideal for long-range parking and hands-free auto-gate systems
Why Choose JUTAI RFID Reader?
- Hands-free convenience - no need to stop and flash cards
- Enhanced security - no need to roll down windows in adverse conditions
- Reduced congestion during peak hours
- Adds premium prestige to residential or commercial buildings
Functions and Advantages
Orientation Identification
18dBi high-gain directional antenna with 30:1 directional capacity for precise identification.
Adjustable Reading Range
Signal attenuator allows reading distance adjustment from 1 to 30 meters for various applications.
Long-Range Reading Distance
Maximum reading distance of 30 meters for optimal long-range parking identification.
High-Performance Microcontroller
32-bit ARM Cortex-M3 core microcontroller for efficient operation and rapid tag identification.
Tag Identification Speed
50 tags per second identification speed with simultaneous reading capacity of 50 tags per second.
Enhanced Security
Frequency hopping and multi-type address technology with strong encryption for data security.
Anti-Collision Capability
Can read up to 50 RFID card IDs simultaneously for efficient anti-collision functionality.
Multi-Type Data Output
Supports multiple data output formats including Weigand and RS485 for versatile transmission.

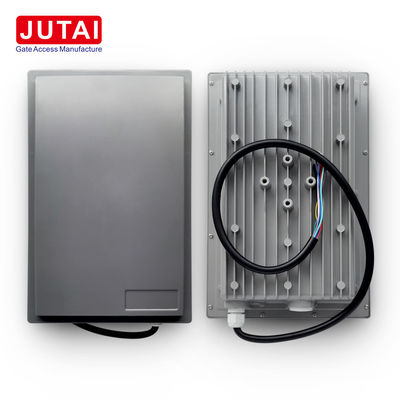

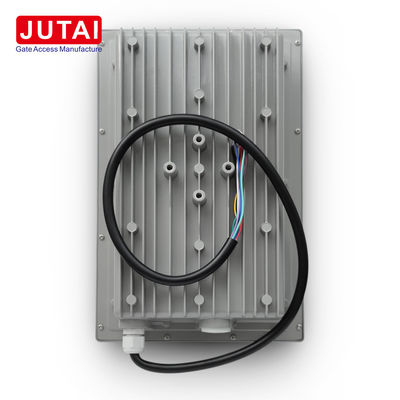

Product Images
Installation and Application
- Open the backside cover for setting the length range reader
- Fix the reader with inner hexagon screws
- Using U-type support, fix the L support to the pole with 60mm diameter
- Reader will emit "Bee Bee" sound after power connection
Notice: Re-power the reader again after setting is finished.
Function Settings
Packing List
| Item | Quantity | Description |
|---|---|---|
| Reader | 1 Unit | Main reader unit |
| User Manual | 1 Pcs | Operation and installation guide |
| Line | 12 PIN | Connection cable |

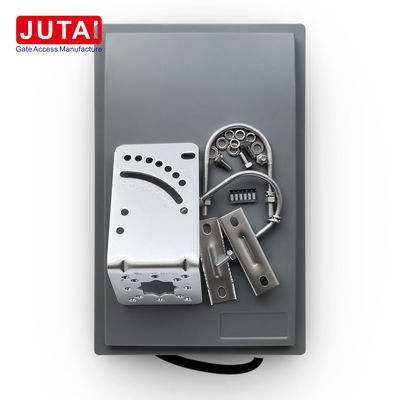

| Mounting Bracket & Screw & Fuse | 4 pcs | M6*6 inner hexagon screw with U/L Support |
Distance Decay Settings
