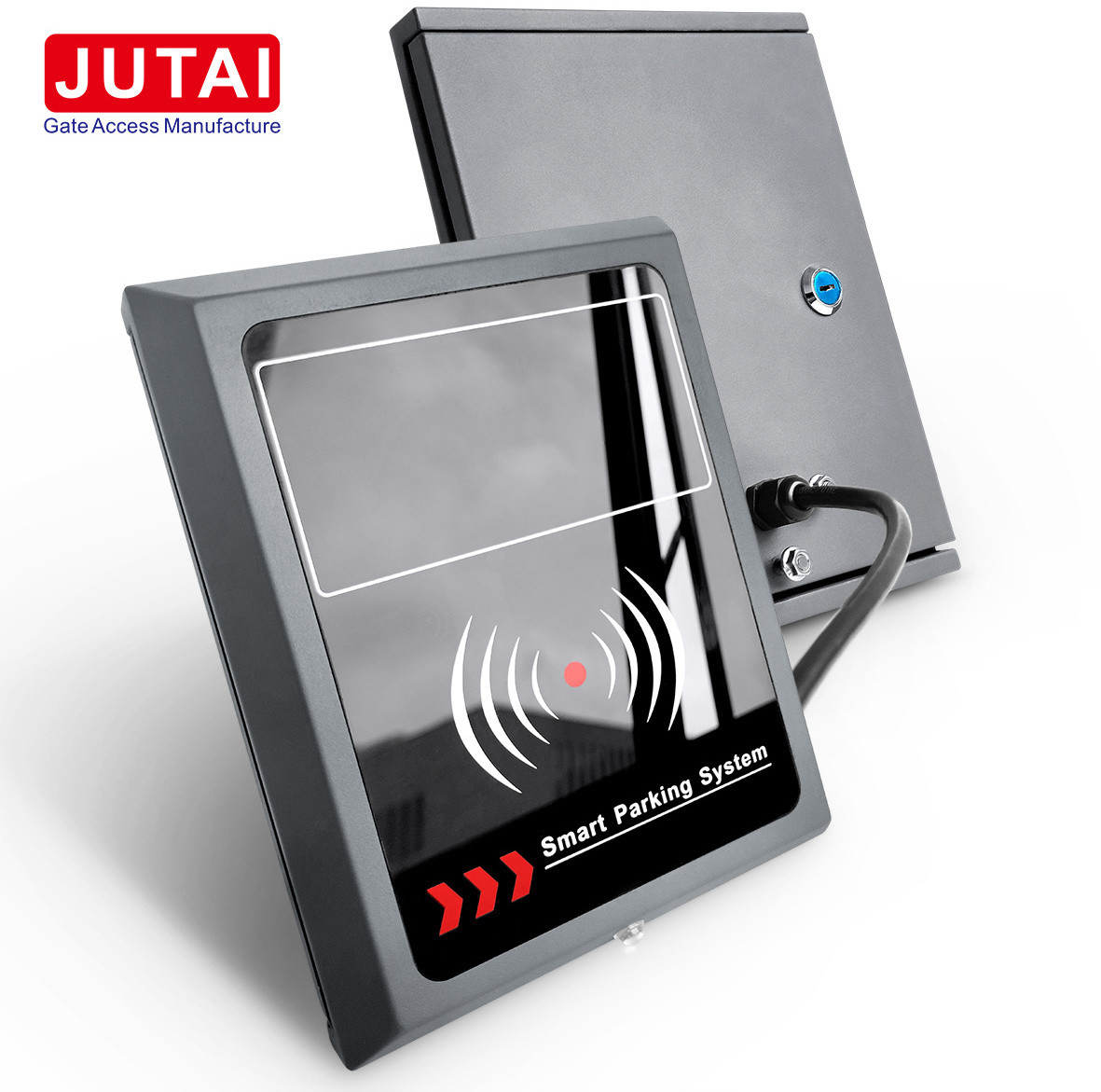

Encrypted Bluetooth Card Readers 15m Range For Parking Entry Control

Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xOperating Voltage | DC 12-24V/2A | Working Current | <500mA |
---|---|---|---|
Commnication Interface | RS485, Wg26/G34, RS232(Optional) | Recognition Speed | 6okm/H(Max) |
Recognition Angle | <60 Degree | Output | 1 Relay Output Interface |
Serial Communication Baud Rate | 9600BPS, N, 8, 1 | Waterproof | IP65 |
Input | 1 Input Trigger Interface | Card Reader Interval | 1s-15s (Adjustable) |
Working Frequency | 433MHz | Specification | 40.5*30*10.5cm |
Card Type | CPU, HID, Mifare, EM, 433MHz | Interface | USB, Parallel Port, Serial Port, Wigand |
Highlight | Encrypted Bluetooth Reader 15m Range,parking entry control bluetooth card readers,bluetooth card readers 15m Range |
Encrypted Bluetooth Reader With 2+ Years Battery Life 15m Range for parking entry control
Enhancing Access Control with Advanced RFID Solutions
In the realm of access control management, technological innovations continue to redefine security standards and convenience. Shenzhen JUTAI Comm Co., Ltd., a leader in RFID technology, introduces two cutting-edge products designed to revolutionize access control systems: the JUTAI Long Range Bluetooth RFID Reader and the JUTAI Bluetooth RFID Smart Card Reader for Access Control.
Advanced Bluetooth RFID Reader for Parking Lots
The JUTAI Long Range Bluetooth RFID Reader is engineered to provide seamless access control solutions tailored for parking lots. Leveraging the most advanced Bluetooth technology combined with optical excitation and precise positioning, this reader offers unparalleled performance.
Key Features:
-
Long Battery Life: With an ultra-low power consumption design, the JUTAI Long Range Bluetooth RFID Reader boasts a battery life of at least 2.5 years, surpassing conventional Bluetooth cards.
-
High Security: Incorporating high-level encryption technology, this reader ensures enhanced security, making it difficult to copy and improving overall security levels.
-
Sleek Design: Featuring an ultra-thin streamlined design, the reader reduces transportation costs while offering a classic appearance.
-
Enhanced Stability: Innovative hardware development technology ensures high product stability and consistent performance.
Installation and Field Testing:

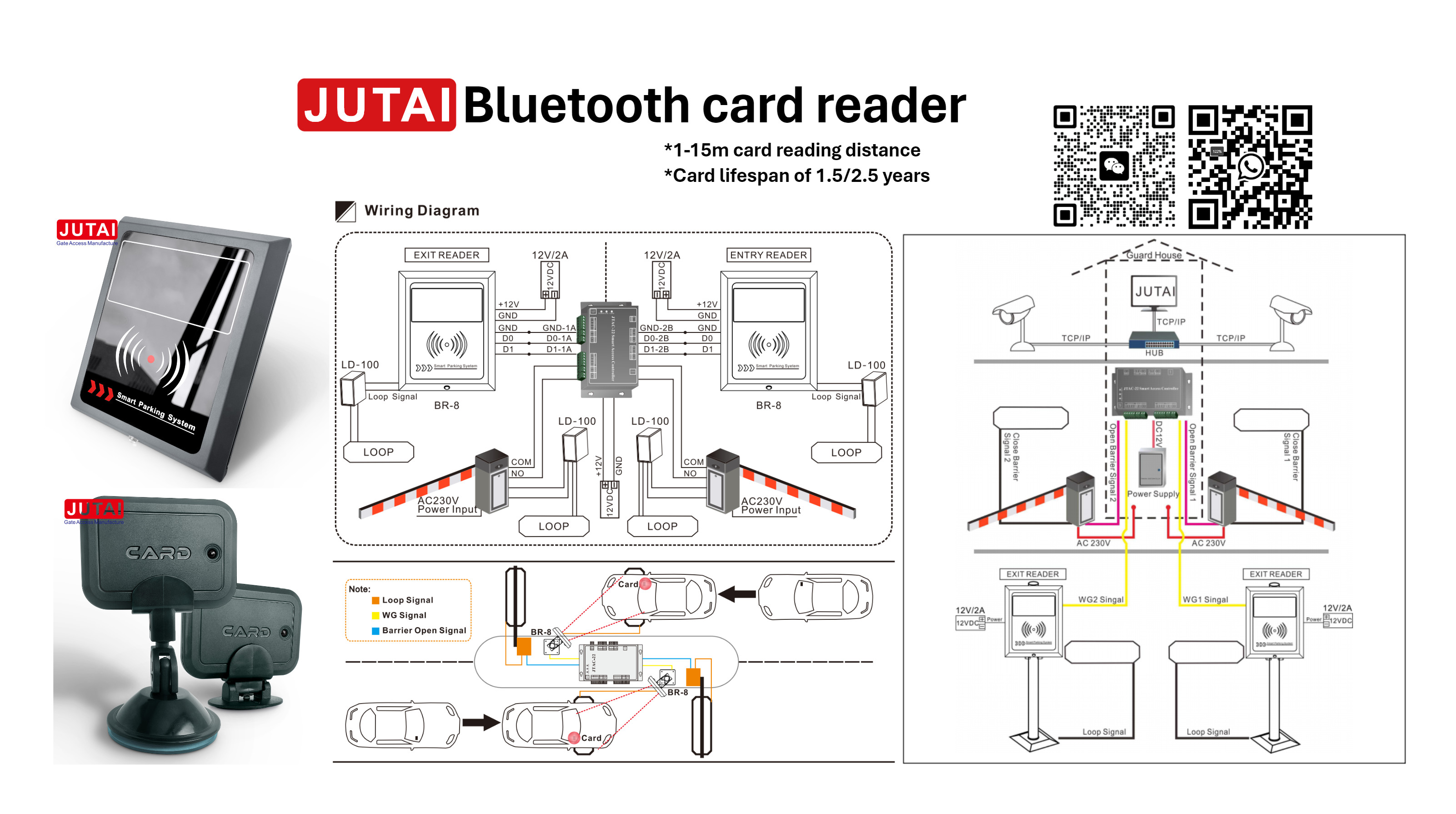

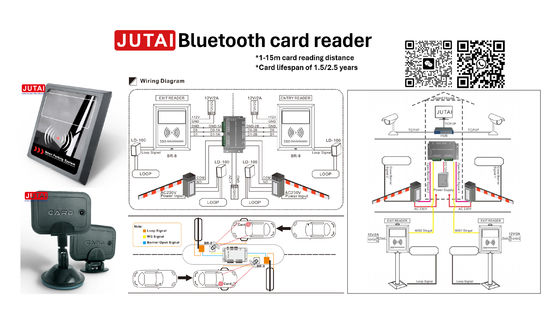

The installation angle of the card reader is crucial for optimal performance. Wiring between the card reader and controller follows specific guidelines to ensure proper functionality. Field testing involves placing the remote card on the car's windshield and driving towards the card reader to awaken the card and adjust the reading direction for optimal results.
Comprehensive Access Control Solutions
In addition to the Long Range Bluetooth RFID Reader, JUTAI also offers the Bluetooth RFID Smart Card Reader for Access Control. This advanced reader is designed to provide access control solutions for parking lots and access control systems.
Key Features:
-
Complete Solutions: JUTAI provides comprehensive hardware and software solutions, including cloud access control systems and advanced encryption technology, ensuring maximum security.
-
Super Penetration Ability: The reader offers fast card reading and penetration even through explosion-proof membranes, ensuring stable performance under various conditions.
-
Fast Speed Car Detection: Unique chip control programs enable quick response and detection of fast-moving vehicles.
-
Rainy Day Application: The reader provides a safe and convenient solution for rainy weather conditions, eliminating the risk of exposure to theft or wet clothes.
Experience Unparalleled Convenience and Security
With these innovative RFID solutions from Shenzhen JUTAI Comm Co., Ltd., access control management reaches new heights of convenience and security. Trust JUTAI for advanced access control solutions prioritizing safety and convenience.

Bluetooth RFID Smart Card Reader for Door Access Control
Technical Parameters and Advantages:
-
Technical Solution Innovation:
- JUTAI's Bluetooth card boasts an innovative design concept focused on low power consumption, offering a battery life of over 1.5 years, surpassing competitors' products.
- Utilizes high-level encryption technology, making JUTAI Blue Cards difficult to copy, thereby enhancing community security and enabling property companies to generate profits.
-
Streamlined Design and Hardware Development:
- Features an ultra-thin streamlined design for a mini and classic appearance, reducing international transportation costs.
- Incorporates unique hardware development technology, ensuring high product stability and utilizing infrared light transmission technology for consistent performance.
-
Production Line Extension:
- JUTAI expands its product line to include long-distance card readers and cloud access control systems, offering complete hardware and software solutions with enhanced encryption technology to maximize security.
-
Super Penetration Ability and Rainy Day Application:
- Demonstrates super penetration ability through explosion-proof membranes, ensuring fast card reading even through VKOOL explosion-proof film.
- Provides efficient detection of fast-moving cars and seamless operation on rainy days, eliminating the need to roll down windows and reducing the risk of theft.
Advantages of Long Range Bluetooth RFID Reader:
-
Technical Solution Innovation:
- Emphasizes low power consumption, extending battery life to over 2.5 years, setting it apart from competitors.
- Implements high-level encryption technology, enhancing community security and offering profit opportunities for property companies.
-
Comprehensive Cost-Effectiveness:
- Leverages extensive experience in radiofrequency technology to offer stable and reliable long-distance RFID readers at competitive prices.
-
Production Line Extension:
- Expands product offerings to include cloud access control systems, ensuring maximum security and protecting customers' economic interests.
-
Enhanced Performance in Various Conditions:
- Demonstrates the ability to penetrate VKOOL explosion-proof membranes, facilitating quick card reading even at high speeds.
- Enables fast detection of passing cars, improving overall operational efficiency, and providing seamless performance during rainy weather conditions.
By integrating innovative technology, advanced hardware development, and a focus on user convenience and security, JUTAI establishes itself as a leading provider of Bluetooth RFID smart card readers for door access control and long-range RFID solutions.
Specifications
Operating Voltage | DC 12-24V/2A |
Working current | <500mA |
Operating temperature | -20~+60°C |
Working humidity | 5%~90% |
Waterproof and dustproof grade | IP65 |
Receive sensitivity | -110dbm |
Serial communication baud rate | 9600bps,N,8,1 |
Communication Interface | RS485,Wiegand26/Wiegand34,RS232(optional) |
working frequency | 433MHz |
Recognition speed | 60km/h(max) |
Card reading interval | 1s-15s (Adjustable) |
Card reading distance | 1-15m |
Recognition angle | <60° |
Modulation | ASK |
Output | 1 relay output interface |
Input | 1 input trigger interface |
Device address | 1-15 |
Installation method | Vertical installation |
Size | 260*210*59mm |
weight | 2KG |

Technical Parameters Of Bluetooth RFID Smart Card Reader For Door Access Control

Technical Parameters Of RFID Bluetooth Reader In Parking Lot And Access Control
