CE 13.56 Mhz Mifare RFID Card Reader Writer For Data Encoding

13.56MHz Desktop Card Issuer RFID Card Writer For Data Encoding

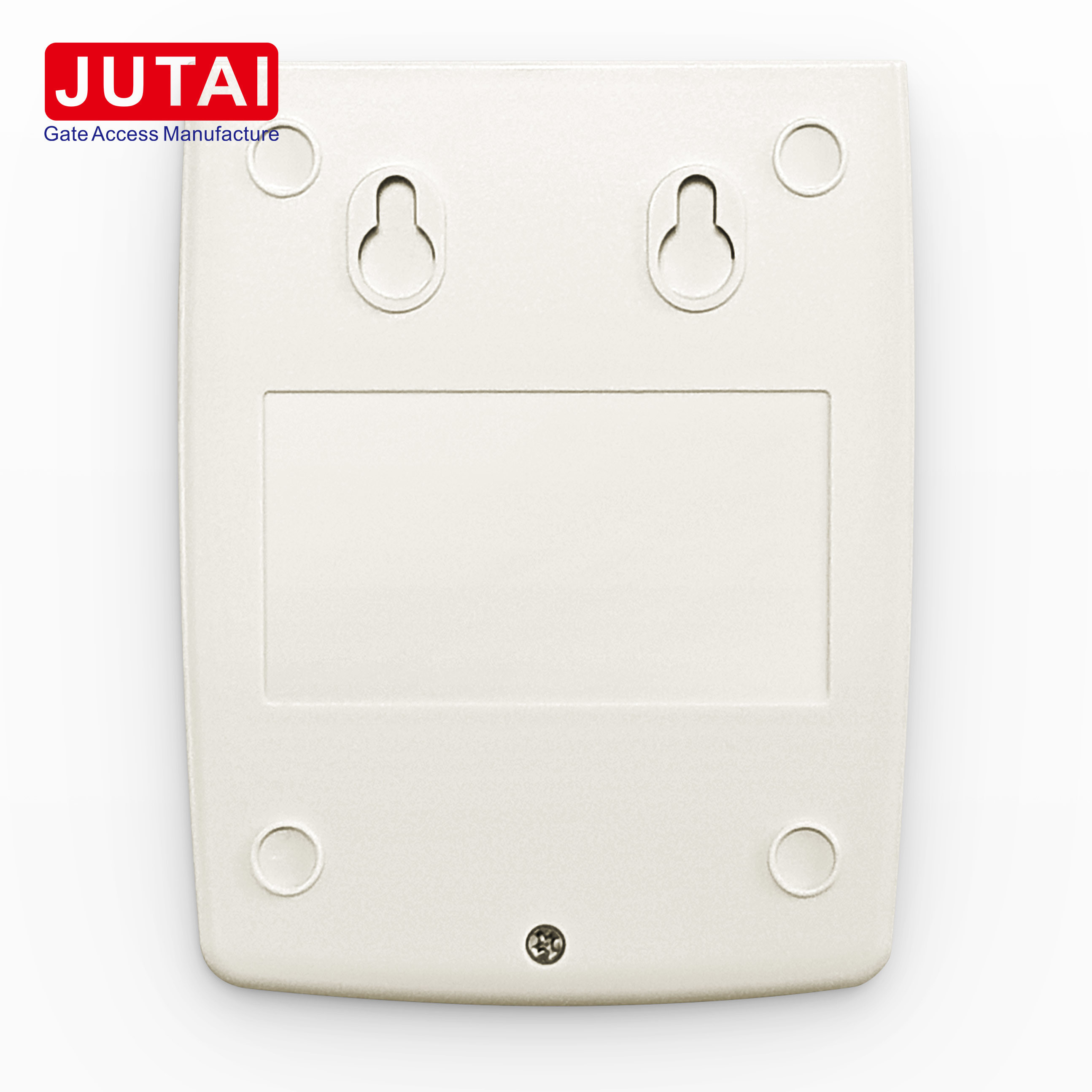

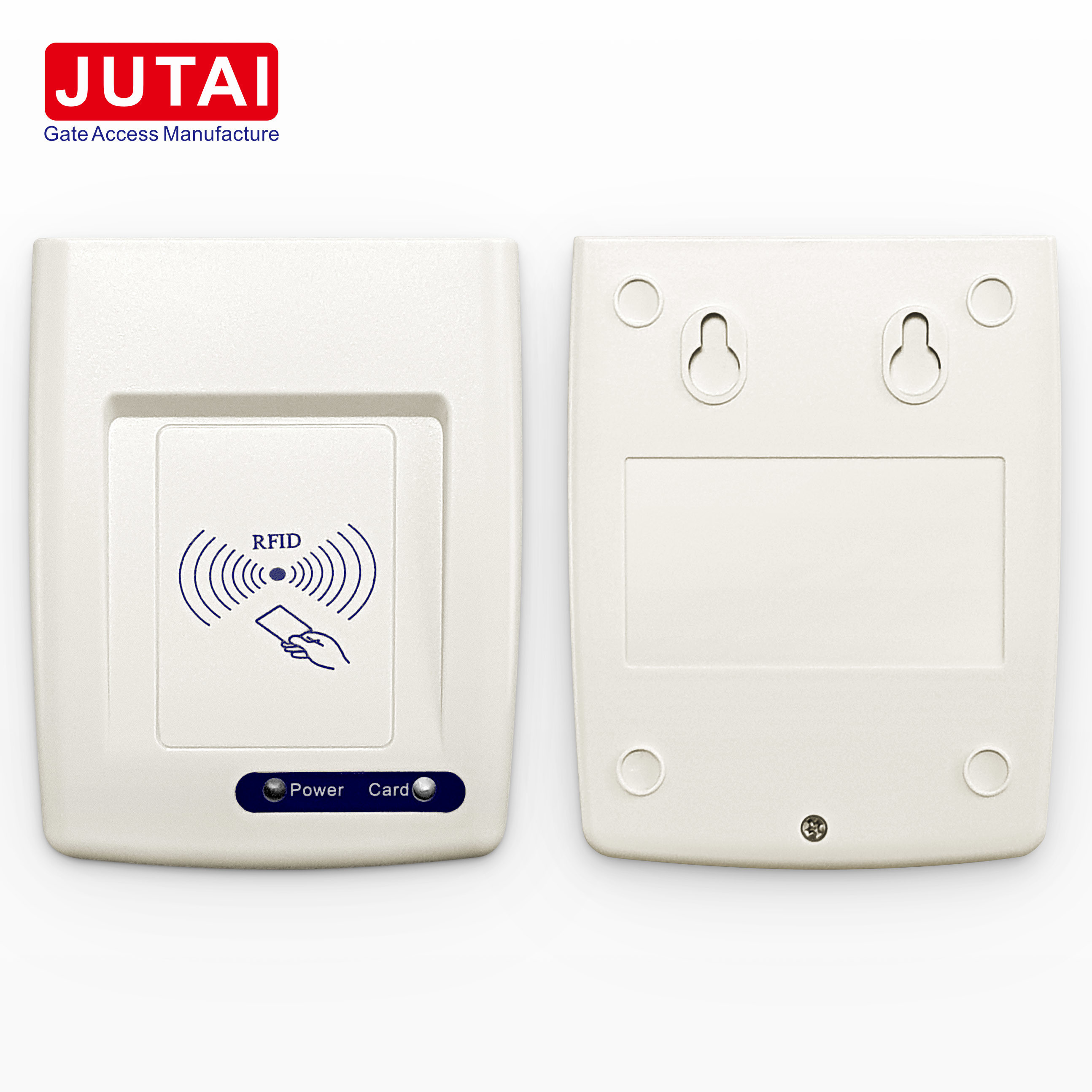

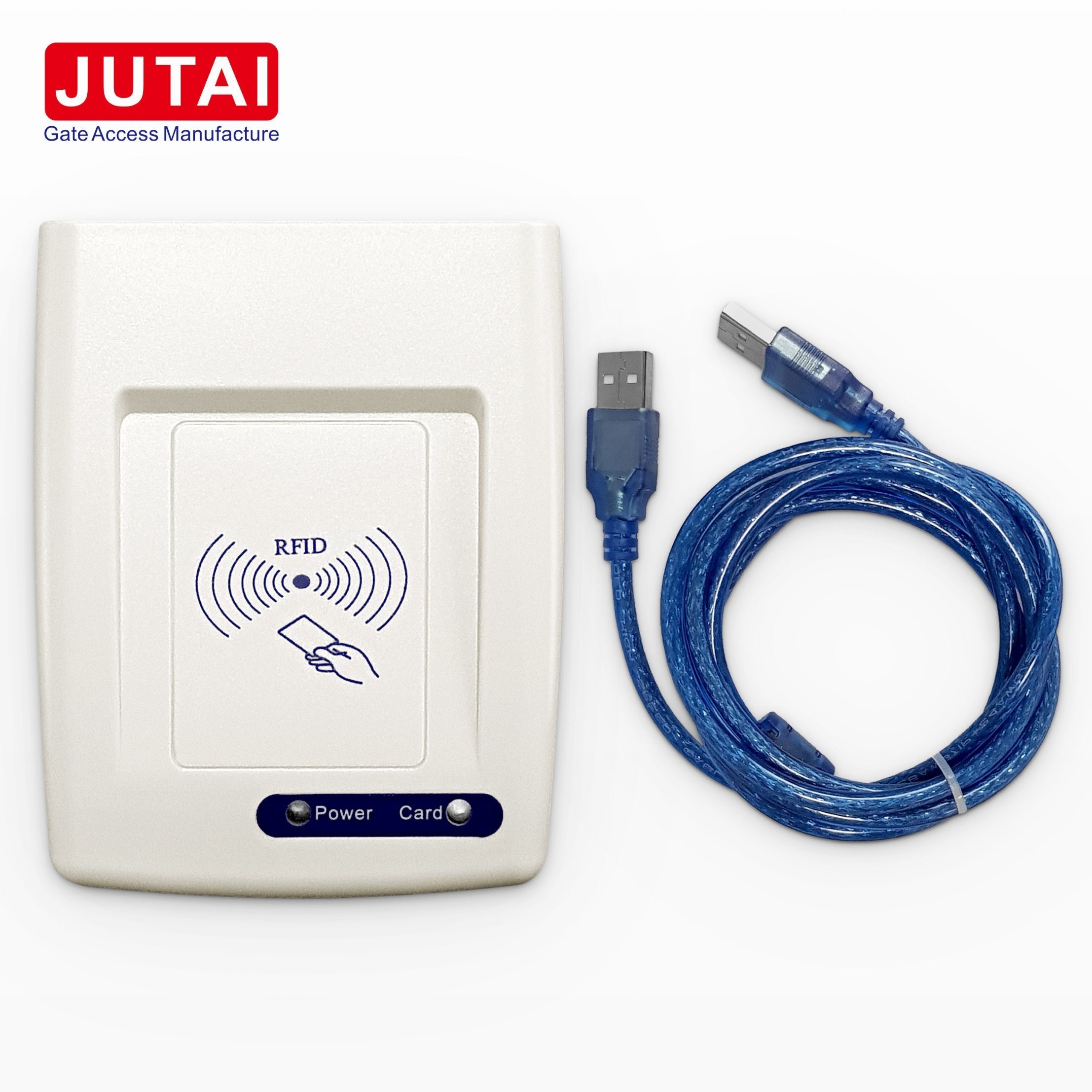

Product Name: DT-5 Desktop IC Card Issuer RFID Card Writer

Description: The DT-5 Desktop IC Card Reader is a convenient and efficient solution for reading Mifare cards (Model M1) in access control systems. Simply connect the DT-5 to your computer's USB port and place the Mifare card on its surface to initiate the reading process. The DT-5 will swiftly capture the M1 card ID, which is then seamlessly transmitted to your access control software. With its plug-and-play functionality, the DT-5 requires no additional power supply, drawing power directly from the connected PC.

Key Features:

1. Compatibility: Designed to work with Mifare cards (Model M1) operating at a frequency of 13.56MHz.
2. Convenient Reading Distance: Provides a reading distance of 3~5cm, allowing for easy card detection.
3. USB Connectivity: Utilizes the USB keyboard port of the PC for seamless connection and data transmission.
4. Direct Power Source: Draws power directly from the connected PC, eliminating the need for an external power supply.
5. Effortless Operation: Simple to use—just connect the device, place the card, and retrieve the card ID.

The DT-5 Desktop IC Card Reader offers a hassle-free solution for reading Mifare cards in access control systems. With its convenient operation, compact design, and direct power supply from the PC, the DT-5 simplifies the card reading process, ensuring smooth integration into your access control system.



Parameter	Value
Frequency	13.56MHz
Card Type	IC Card
Reading Distance	3~5cm
Com Port	USB Keyboard of PC
Working Frequency	13.56MHz

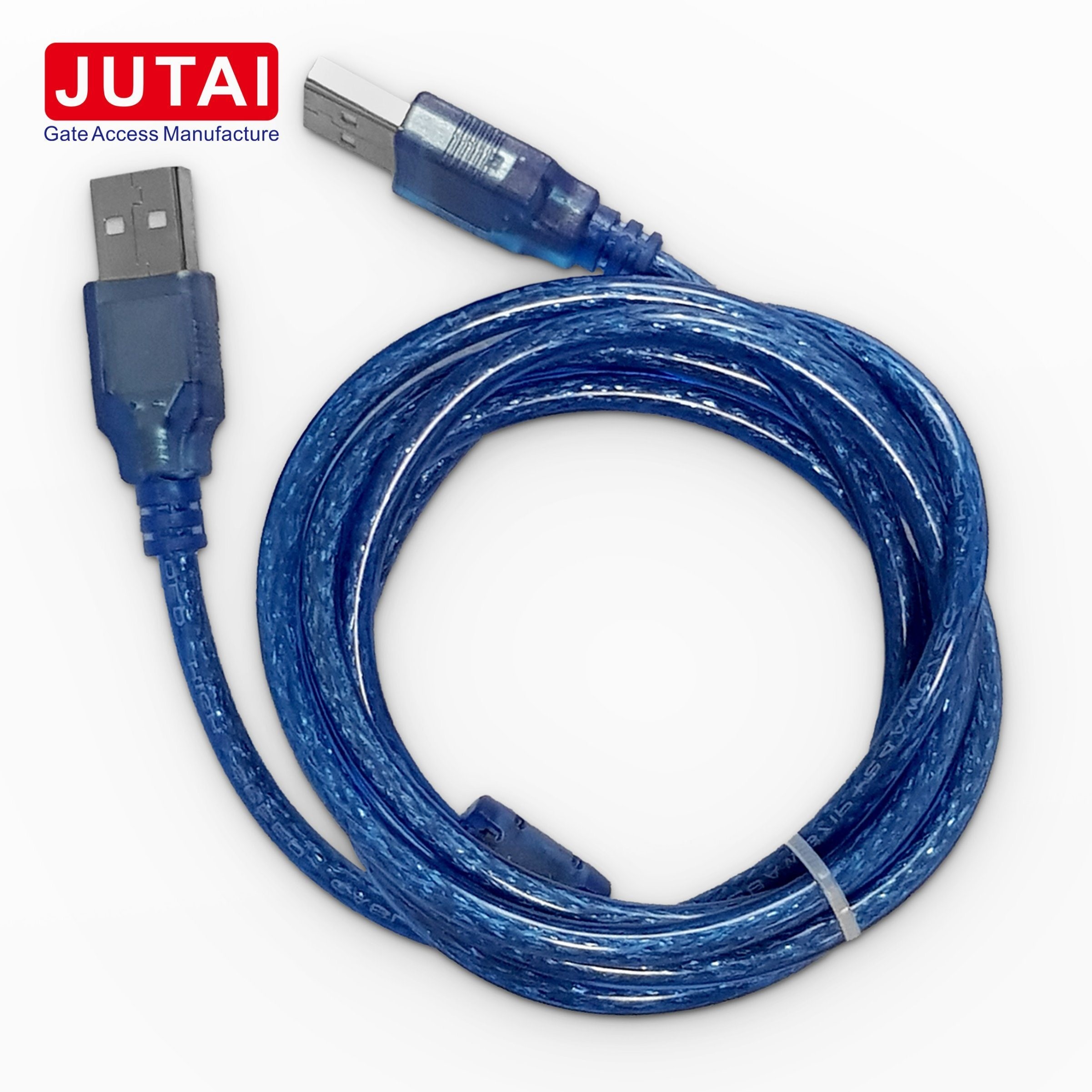

Connection	USB cable will be connected to one end of the computer's USB port, one end connected to the reader's communication port, you can work
Data Format	Ten decimal numbers + Enter or Decimal number (Card output format can be designed according to customer's requirement)







Size

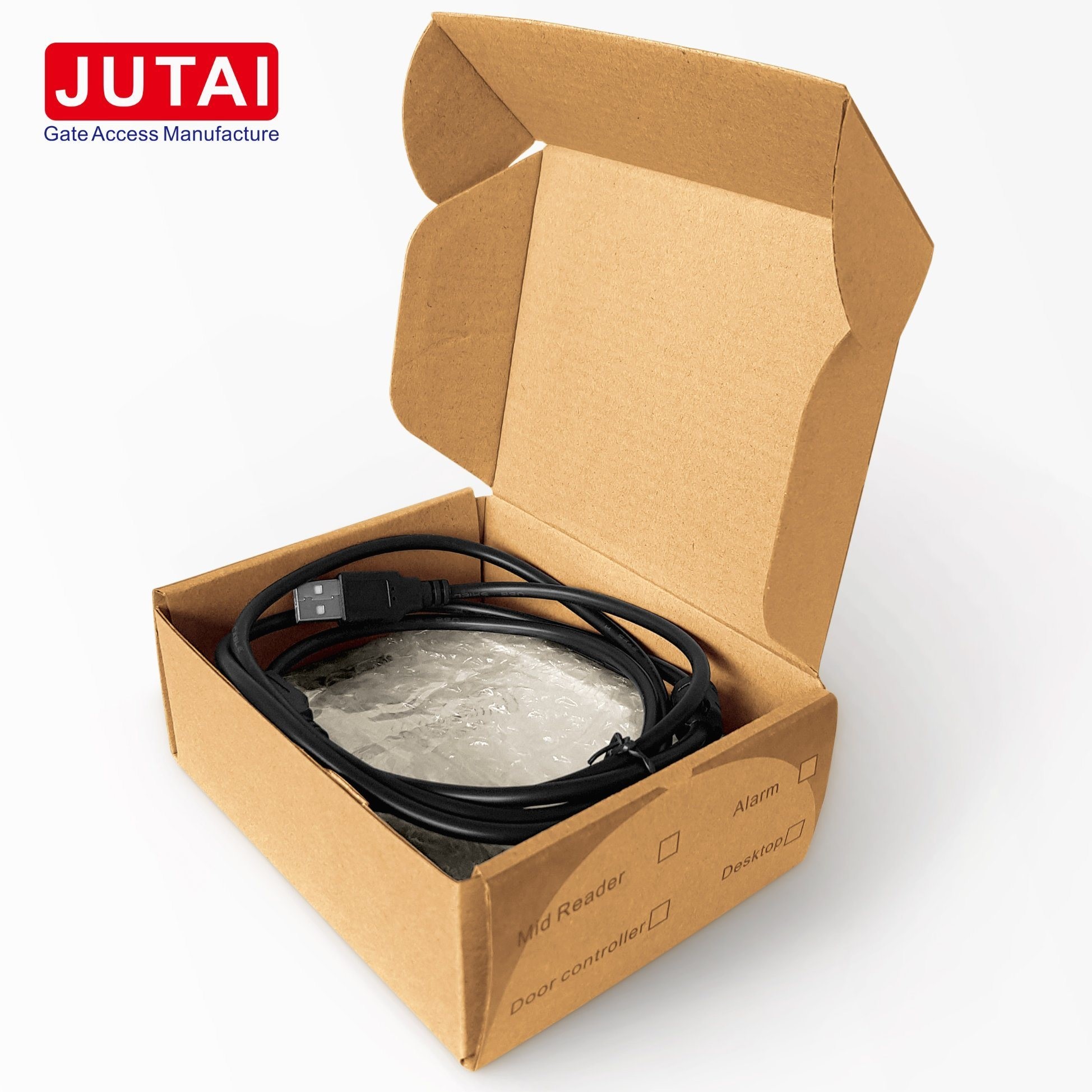

Packing/Shipping
