Home Security Safety Light Curtain 1M 8 Beams
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Aluminum Alloy + PC | Detection Range | 20m |
|---|---|---|---|
| Power Supply | DC12-24V | Working Temperature | -20 To 60℃ |
| Rotation Angle | 180 Degrees Horizontal | HS Code | 9031809090 |
| Highlight | ip65 light curtain sensor,ip65 safety light curtain,home security light curtain sensor |
||
Product Description

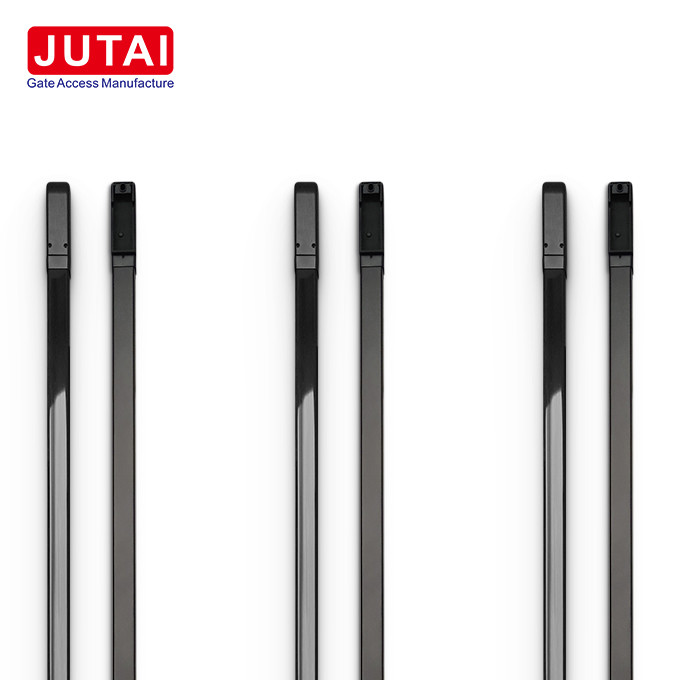

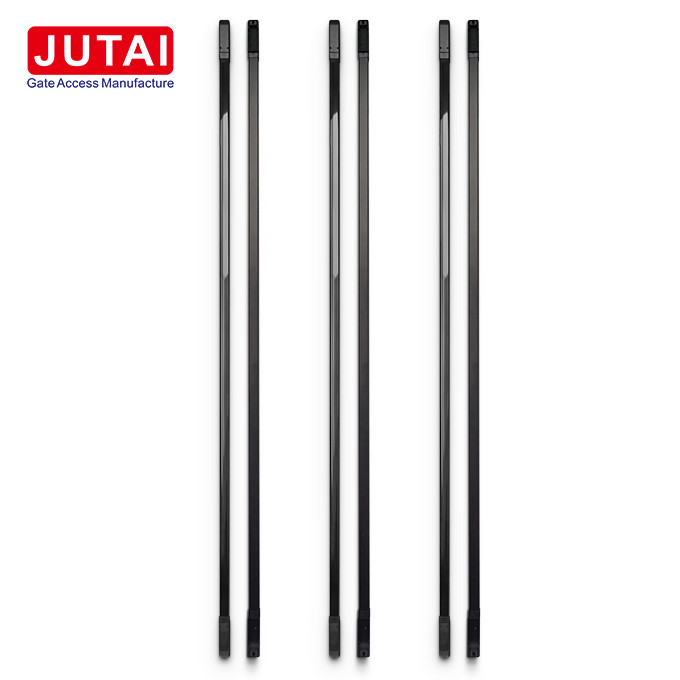

Safety light curtain 1 M 8 beams high precision IP65 For gate / home security
Introducing the Safety Light Curtain – the ultimate solution for industrial door protection, barrier gate safety, and home security. Our standard version comes with a 1-meter height and 8 infrared beams, delivering unmatched functionality and reliability.
Crafted to endure intense light interference and outdoor conditions, our product boasts an IP65 waterproof rating and a detection range exceeding 20 meters.
Key Features:
- Industrial Door Protection: Detects objects passing through when the door is closed, automatically reopening it for safety.
- Barrier Gate Safety: Ideal for barrier gates, our sensor promptly reopens the gate upon detecting a person or vehicle passing through while closing.
- Home Security: Safeguard your home from intruders with our sensor's relay output, triggered upon detecting unauthorized entry.
Customization Options: Our Safety Light Curtain Sensor offers various lengths and beam configurations to meet your specific requirements.
Standard models include:
- PB3-4L15: 30cm height with 4 built-in infrared beams.
- PB10-4L15: 100cm height with 4 built-in infrared beams.
- PB20-8L15: 200cm height with 8 built-in infrared beams.
Experience enhanced safety and peace of mind with our Safety Light Curtain Sensor. Trust our reliable and customizable solutions to effectively safeguard your premises.
Wiring Definition
Size
Installation
How to install JUTAI Infrared Curtain Photocell? We have also listed the installation drawings step by step for customers' reference, making the installation simple, easy and fast;
Operation Steps:
- Remove the Top and Bottom Cover, and connect the wires, leading the thread end from the threaded port.
- Confirm the installation position, align the transmitter and receiver in parallel, and mark the hole positions.
- Use a percussion drill to drill holes at the location of the wall marking hole, and insert the wall plug into the fixing hole to secure it with screws.
- Secure the transmitter and receiver with M3*25 screws, and connect the power supply for testing. If the angle is deviated, adjust the aluminum tube accordingly. Once adjusted, lock the rotating screw.
- Secure the top cover and bottom cover with M2*8 screws, and perform a final test.
FAQ:
During the installation process, we have compiled some frequently asked questions (FAQs) along with their answers to address any common queries or concerns that may arise, saving you valuable time.
Packaging Details:
In addition to highlighting the functional advantages of our products, we also provide comprehensive information on the packaging details of the Jutai Infrared Curtain Photocell.
Advantages:
JUTAI Curtain Photocell offers the following advanced functions:
- Utilizes unique infrared technology, ensuring reliable performance even under direct sunlight.
- Stable detection distance of 20 meters ensures consistent and accurate operation.
