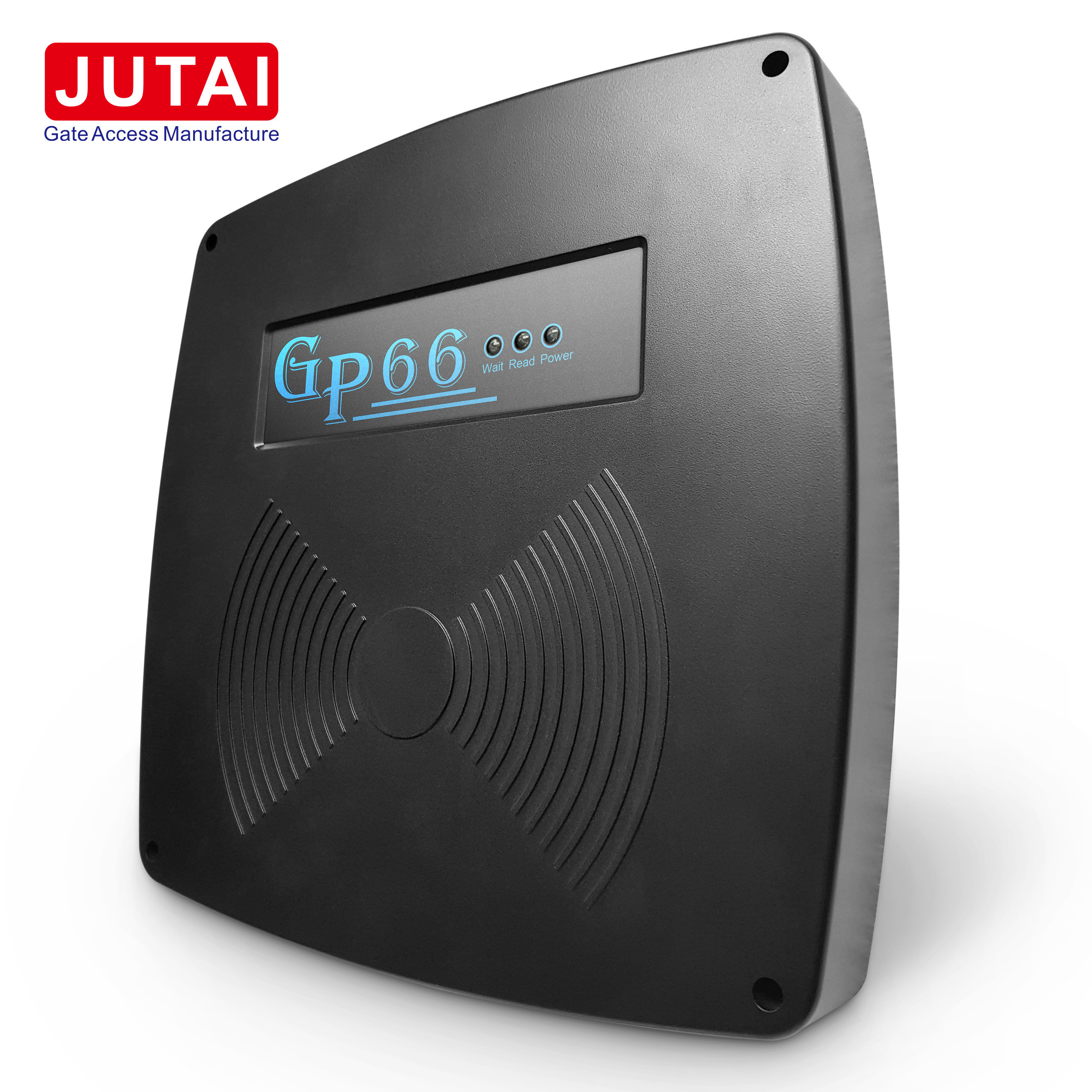

GP66 125KHz RFID Reader Stable 100cm Reading Distance For Car Parking Entry

  • GP66 125KHz RFID Reader Stable 100cm Reading Distance For Car Parking Entry
Place of Origin China
Brand Name JUTAI
Certification CE
Model Number GP-66
Minimum Order Quantity 1
Price Negotiation
Packaging Details Cartoon
Delivery Time 5 - 8 working days
Payment Terms T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay
Supply Ability 1000 pieces per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Reading Distance 65-100cm Power Supply DC12V/1A
Working Current ≤450mA Baud Rate 9600, N, 8, 1
Working Frequency 125kHz Relative Humidity ≤90%
Output Mode Wiegand 26/34, RS232/RS485 Waterproof IP65
Cover Material ABS+PC, UV Protection Product Size 26*26*3.5cm
Highlight

GP66 125KHz RFID Reader

,

100cm Reading Distance 125KHz RFID Reader

,

Car Parking Entry 125KHz RFID Reader
Leave a Message
Product Description
GP66 125KHz RFID Reader Stable 100cm Reading Distance for Car Pariking Entry
Product Description



Product Description

The GP66 is an advanced 125KHZ proximity long-range RFID reader by JUTAI, known for its compact dimensions and remarkable read range of up to 65cm, extending up to 100cm. This reader is tailored for diverse applications such as access control, car parking, and through-wall reading.

Key Features:

  1. Solar Film Penetration: The GP66 is capable of penetrating solar films like V-Kool40, offering a cost-effective RFID solution without compromising performance.

  2. Auto Tuning Function: It features an auto-tuning function to compensate for metal presence and interference, ensuring consistent performance.

  3. Extended Reading Range: With an extended reading range from 65cm to 100cm, the GP66 delivers reliable long-distance reading, ideal for various applications.

  4. User-friendly Design: Equipped with bright LED indicators and a tuning LED bar, the GP66 ensures easy operation and setup.

  5. Field-upgradeable Firmware: Its firmware is field-upgradeable, allowing for continuous improvements and ensuring compatibility with evolving technologies.

  6. Durable Construction: Housed in an IP-65 waterproof casing, the GP66 is designed for durability and reliable performance even in harsh environments.

  7. High-quality Power Supply: It comes with a high-quality power supply featuring a noise filter, ensuring stable and reliable operation.

  8. Optional Loop Inductive Function: The GP66 offers an optional loop inductive function for added versatility in different applications.

  9. Anti-Rereading Function: An anti-rereading function is included for enhanced security, preventing unauthorized access attempts.

Advantages:

  1. Extended Reading Range: The GP66 offers an extended and robust reading distance, making it suitable for various applications requiring long-distance reading.

  2. Interference Resistance: Its robust operational mode and anti-interference capabilities ensure consistent performance even in environments with high levels of interference.

  3. Solar Film Compatibility: With the ability to penetrate solar films, the GP66 provides a cost-effective RFID solution without compromising performance.

  4. Hands-Free Access Management: Supporting EM cards and card stickers, the GP66 offers a hands-free access control solution, enhancing convenience and safety.

  5. Environmental Adaptability: Equipped with a high-quality power supply and advanced technology, the GP66 operates reliably in diverse environments, ensuring stability and performance consistency.

  6. Seamless Integration: Compatible with various interfaces, the GP66 seamlessly integrates into existing access control systems, facilitating easy upgrades and enhancing operational efficiency.

With its advanced features and versatile capabilities, the GP66 RFID reader offers a reliable and efficient solution for access control systems, ensuring seamless operation and enhanced security across various applications.



Specifications

Interface Wiegand 26 or 34 bits, RS232 or RS485
Working Current 120mA
Reading Range 65-100cm
RFID Card Accepted 125KHZ, 64bits, Manchester encoding
Power Supply input 60Hz or 220V/50Hz
Output voltage DC12V/5A
Dimensions 259(w)*259(L)*36(D) mm
Housing material ABS
Operating Temperature -30℃ to 65℃
Humidity 0-95% relative humidity noncondensing
Warranty 1 year

GP66 125KHz RFID Reader Stable 100cm Reading Distance For Car Parking Entry 0

GP66 125KHz RFID Reader Stable 100cm Reading Distance For Car Parking Entry 1

RFID Em 125kHz Proximity Middle Range Car Parking Reader with Em Cards


RFID Em 125kHz Proximity Middle Range Car Parking Reader with Em Cards
RFID Em 125kHz Proximity Middle Range Car Parking Reader with Em Cards
RFID Em 125kHz Proximity Middle Range Car Parking Reader with Em Cards
RFID Em 125kHz Proximity Middle Range Car Parking Reader with Em Cards
Install the RFID EM 125kHz Proximity Middle Range Car Parking Reader with EM Cards from Shenzhen Jutai Comm Co., Ltd. Ideal for car access and management systems. Supports EM cards and offers secure access control.

RFID Em 125kHz Proximity Middle Range Car Parking Reader with Em Cards





Functions and Benefits

  1. Extended Reading Range: The GP-66 RFID reader sets itself apart by offering a reading distance that exceeds that of other similar RFID readers, delivering a stronger and longer reach for enhanced performance.

  2. Enhanced Range Capability: With its robust operational mode and outstanding anti-interference ability, the GP-66 can achieve an impressive reading range of up to 1 meter, ensuring consistent and reliable operation even in the most challenging environments.

  3. Solar Film Compatibility: Unlike its competitors, the GP-66 has the unique capability to penetrate any brand of solar film, providing a cost-effective RFID solution without compromising on performance. This feature ensures seamless functionality regardless of the type of solar film installed.

  4. Hands-Free Access Control: Offering a seamless hands-free access control solution, the GP-66 supports EM cards and card stickers, eliminating the need for manual intervention during access. This enhances convenience and efficiency while ensuring a smooth user experience.

  5. Adaptability to Various Environments: Equipped with a high-quality power supply, the GP-66 demonstrates exceptional adaptability to diverse environments, ensuring consistent performance under varying conditions. Its robust construction makes it suitable for deployment in a wide range of settings.

  6. Easy Integration: Integrating the GP-66 into any company's access control system is straightforward and hassle-free. It supports seamless integration with interfaces such as Wiegand 26/34, RS485/RS232, enabling smooth upgrades for older projects. This simplifies the installation process and enhances overall system compatibility.

Specifications



RFID Em 125kHz Proximity Middle Range Car Parking Reader with Em CardsRFID Em 125kHz Proximity Middle Range Car Parking Reader with Em Cards

RFID Em 125kHz Proximity Middle Range Car Parking Reader with Em Cards





CE



RFID Em 125kHz Proximity Middle Range Car Parking Reader with Em Cards
