GP-99 EM Cards 125KHz Reader 90-130cm For Car Parking Access Control
Product Details
| Reading Distance | 130cm | Power Supply | DC12V/1A |
|---|---|---|---|
| Working Current | ≤450mA | Baud Rate | 9600, N, 8, 1 |
| Working Frequency | 125KHz | Relative Humidity | ≤90% |
| Output Mode | Wiegand 26/34 | Waterproof | IP65 |
| Cover Material | ABS+PC, UV Protection | Specification | 50.3*46.8*10.6cm (Packing Size) |
| Card Type | EM | Interface | Serial Port, Wiegand |
| Highlight | EM Cards 125KHz Reader,GP-99 EM Cards Reader,EM Cards Reader 90-130cm |
||
Product Description

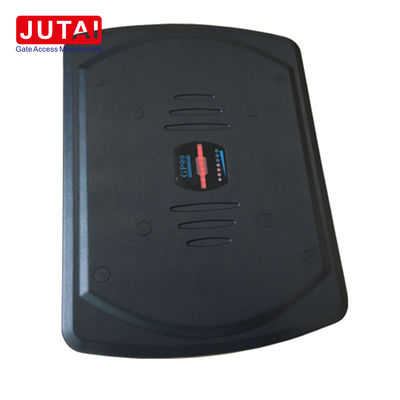

GP-99 EM Cards 125KHz Reader 90-130cm For Car Parking Access Control
Product Overview
The Shenzhen JUTAI GP99 is an advanced 125kHz RFID Long Range proximity reader engineered to excel in extended range access control applications. Offering a generous reading range of 90cm to 130cm, this compact reader stands out for its ability to penetrate solar film, facilitating seamless card reading from within vehicles without requiring window winding.
Technical Specifications
| Power Requirement | +12V DC (linear power supplies recommended) |
|---|---|
| Interface Options | Wiegand 26 / Wiegand 34 / RS232 / RS485 or other optional |
| Maximum Read Range | Up to 1000mm or even longer in ideal conditions |
| Frequency | 125kHz |
| Transponder | Read Only |
| Operating Temperature | -20℃ to +70℃ |
| Color | Black |
Key Features
- Penetration of Solar Film: Specifically designed to penetrate solar film up to V-Kool40
- Auto Tuning Function: Automatically compensates for metal presence and interference
- Extended Reading Range: 90cm to 130cm reading range
- LED Indicators: Bright LED indicators and tuning LED bar for visual feedback
- Firmware Upgradeable: Allows for field firmware upgrades
- IP-65 Waterproof Design: Protection against water and dust ingress
- High-Quality Power Supply: Includes noise filter for stable operation
- Anti-Rereading Function: Prevents unauthorized repeated card readings
- Large Capacity: Supports up to 26,000 users and 100,000 records
- CCTV Integration: Supports integration with CCTV systems
Applications

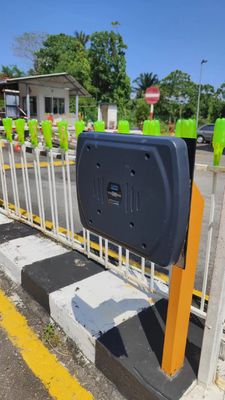

Ideal for access control, car parking systems, through-wall reading applications, and hands-free parking systems. Perfect for enhancing security and convenience in parking management and property access control.
Product Images
JUTAI Smart Tag Parking System
Working Principle
- Vehicle approaches entry proximity reader loops, communicating with JUTAI smart tag
- Reader sends tag signal data to controller via Wiegand interface
- Barrier opens if card ID is valid
- Barrier arm automatically lowers after vehicle passes second loop
- Manager Centre software displays real-time transaction events and enables report export
- Similar process at exit with exit proximity reader
Experience seamless and efficient parking management with the JUTAI Smart Tag Parking System from Shenzhen Jutai Comm Co., Ltd.
Installation Note: Use 12V DC linear power supplies to prevent circuit damage. Avoid proximity to metal surfaces and electronic devices that may affect read range.
