24ghz Microwave Anti Fall Radar Sensor For Parking Barrier Gate
Product Details
| Operating Frequency | 24.150GHz | Input Voltage | 10-24VDC |
|---|---|---|---|
| Relay Contact | 1A@24VDC/AC | Relay Control Time | 1-6s Adjustable |
| Operating Temperature | -40℃~+70℃ | Waterproof | IP67 |
| Detection Range | 1-6m | Specification | 11.8*9.8*2.6cm |
| Highlight | anti fall radar sensor,24ghz radar sensor,24ghz microwave radar |
||
Product Description

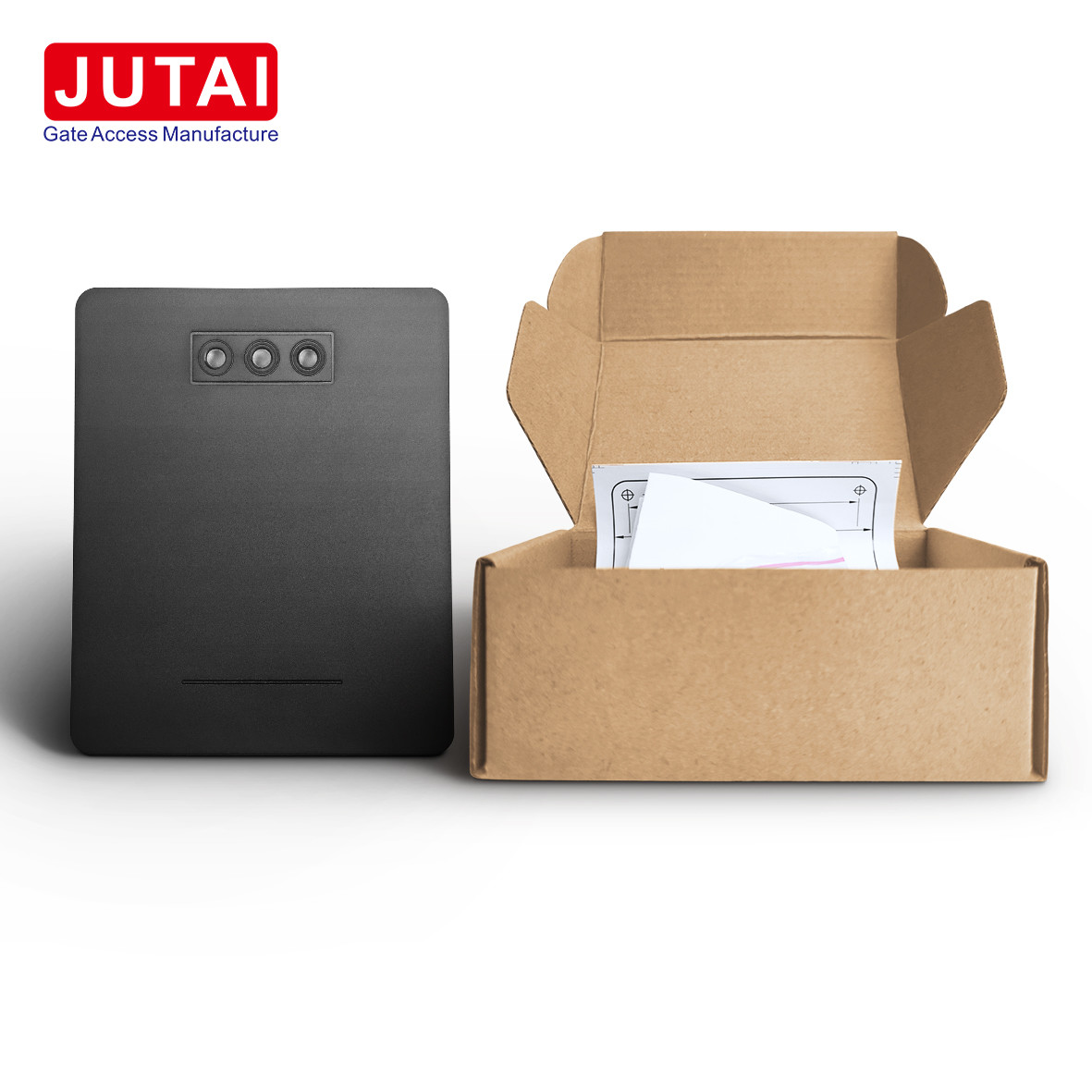

24GHz Microwave Anti-Fall Radar Sensor For Parking Barrier Gate
The RD24-6M Barrier Gate Radar Sensor offers a dependable solution for barrier gate safety management, featuring adaptable compatibility, customizable settings, versatile detection modes, and heightened sensitivity to ensure secure passage through barrier gates.
Working Principle
Barrier radar systems operate on the fundamental principles of radar technology. They emit radio waves, often in the microwave frequency range, and then receive and analyze the reflected signals when they bounce off objects, including vehicles. By measuring the time it takes for the radar signals to return and analyzing their Doppler frequency shifts, these systems can determine the presence, speed, and direction of approaching vehicles.
Key Features
- Precise Detection: Barrier radar systems provide accurate vehicle detection, ensuring that barrier gates are activated precisely when needed
- Weather Resistance: They are not affected by adverse weather conditions such as rain, fog, or snow, ensuring reliable performance in all weather conditions
- Non-Contact Sensing: Radar technology allows for non-contact detection, eliminating the risk of damage to both the system and the vehicles
- Customizable Range: The detection range of barrier radar systems is often adjustable to suit the specific needs of the location
- Real-Time Monitoring: These systems continuously monitor vehicle movements and adjust barrier operations in real-time
- Reduced False Alarms: Radar sensors are less susceptible to false alarms triggered by environmental factors
- Swift Response: They offer quick response times, allowing barrier gates to open and close rapidly
- Integration: Barrier radar systems can seamlessly integrate into existing access control systems
- Enhanced Security: Reliable vehicle detection helps prevent unauthorized access and enhances security
- Cost-Effective: In the long term, radar systems can be cost-effective due to their durability and minimal maintenance requirements
- Improved Traffic Flow: By optimizing vehicle management, these systems reduce congestion and improve traffic flow
- Versatility: They are compatible with various types of barrier gates, including swing gates, slide gates, and arm barriers
Applications
- Parking Facilities
- Toll Booths
- Airports
- Industrial Facilities
- Gated Communities
- Commercial Buildings
- Government Facilities
- Hotels and Resorts
- Hospitals
- Event Venues
- Education Institutions
Specification
| Technology | Microwave Doppler Radar |
|---|---|
| Operating Frequency | 24.150 GHz |
| Input Voltage | 10-24 VDC ±10% |
| Detection Mode | Motion |
| Working Current | <150 mA |
| Output Power (EIRP) | <20 dBM |
| Relay Pulse Mode | 1-6s (Adjustable) |
| Detection Angle (Horizontal) | 0-28° |
| Detection Angle (Vertical) | 0-60° |
| Detection Range | 1-6M (3.3-19.7FT) |
| Dimensions | 118*98*26mm (0.39*0.32*0.09 FT) |
| Operation Temperature | -40℃ ~ +70℃ |
| Detectable Speed | 20-90 ms |
| Housing Materials | ABS |
| Relay Control Time | 1-6s Adjustable |
| Degree of Protection | IP65 |
