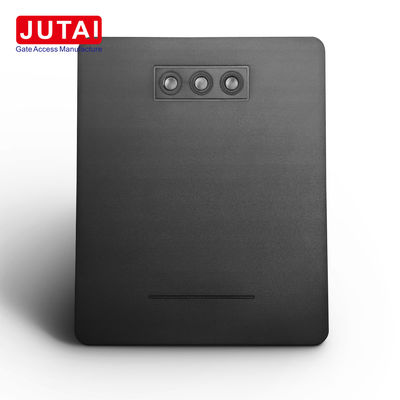

Barrier Gate Anti Smashing Millimeter Wave Radar Sensor For Parking Lot Distinguish Vehicle And People
Product Details
| Operating Frequency | 24.150GHz | Input Voltage | 10-24VDC |
|---|---|---|---|
| Relay Contact | 1A@24VDC/AC | Relay Control Time | 1-6s Adjustable |
| Operating Temperature | -40℃~+70℃ | Waterproof | IP67 |
| Detection Range | 1-6m | Specification | 11.8*9.8*2.6cm |
| Highlight | Barrier Gate millimeter wave radar sensor,Anti Smashing millimeter wave sensor,Anti Smashing mm wave radar |
||
Product Description
Barrier Gate Anti Smashing Millimeter Wave Radar Sensor For Parking Lot Distinguish Vehicle And People
The Barrier Gate Sensor, an essential component of access control systems, is specifically designed to enhance safety and security in areas prone to vehicle-related incidents. Employing advanced radar technology, this sensor ensures precise detection and swift response to approaching vehicles, effectively mitigating risks and ensuring secure passage through barrier gates.
Working Principle
Barrier gate sensors operate on radar technology principles. They emit radio waves in the microwave frequency range and analyze reflected signals from objects including vehicles. By measuring signal return time and analyzing Doppler frequency shifts, these sensors accurately determine the presence, speed, and direction of approaching vehicles.
Key Features
- Precise Detection: Accurate vehicle detection for prompt barrier gate activation
- Weather Resistance: Reliable performance in rain, fog, or snow conditions
- Non-Contact Sensing: Eliminates risk of damage to sensor and vehicles
- Customizable Range: Adjustable detection range for various location requirements
- Real-Time Monitoring: Continuous vehicle movement monitoring with barrier operation adjustments
- Reduced False Alarms: Less susceptible to environmental triggers like moving foliage
- Swift Response: Quick response times for rapid barrier gate operation
- Integration: Seamless integration with existing access control systems
- Enhanced Security: Reliable detection prevents unauthorized access
- Cost-Effectiveness: Durable design with minimal maintenance requirements
- Improved Traffic Flow: Optimized vehicle management reduces congestion
- Versatility: Compatible with swing gates, slide gates, and arm barriers
Applications
- Parking Facilities
- Toll Booths
- Airports
- Industrial Facilities
- Gated Communities
- Commercial Buildings
- Government Facilities
- Hotels and Resorts
- Hospitals
- Event Venues
- Education Institutions
Technical Specifications
| Technology | Microwave Doppler Radar |
|---|---|
| Operating Frequency | 24.150 GHz |
| Input Voltage | 10-24 VDC ±10% |
| Detection Mode | Motion |
| Working Current | <150 mA |
| Output Power (EIRP) | <20 dBM |
| Relay Pulse Mode | 1-6s (Adjustable) |
| Detection Angle (Horizontal) | 0-28° |
| Detection Angle (Vertical) | 0-60° |
| Detection Range | 1-6M (3.3-19.7FT) |
| Dimensions | 118×98×26mm (0.39×0.32×0.09 FT) |
| Operation Temperature | -40℃ ~ +70℃ |
| Detectable Speed | 20-90 ms |
| Housing Materials | ABS |
| Relay Control Time | 1-6s Adjustable |
| Degree of Protection | IP65 |
