1300mm Range EM Cards Proximity Reader For Car Parking System Access Control

  • 1300mm Range EM Cards Proximity Reader For Car Parking System Access Control
Place of Origin China
Brand Name JUTAI
Certification CE
Model Number GP-99
Minimum Order Quantity 1
Price Negotiation
Packaging Details Cartoon
Delivery Time 5 - 8 working days
Payment Terms T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay
Supply Ability 1000 pieces per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Reading Distance 130cm Power Supply DC12V/1A
Working Current ≤450mA Baud Rate 9600, N, 8, 1
Working Frequency 125KHz Relative Humidity ≤90%
Output Mode Wiegand 26/34 Waterproof IP65
Cover Material ABS+PC, UV Protection Specification 50.3*46.8*10.6cm (Packing Size)
Card Type EM Interface Serial Port, Wiegand
Highlight

Car Parking System 1300mm Proximity Reader

,

1300mm Range EM Cards Proximity Reader

,

Access Control EM Cards Proximity Reader
Leave a Message
Product Description
GP-99 EM Cards 1.5m Middle Range Proximity Reader for Car Parking Access Control System
Product Description

Shenzhen JUTAI GP99 - 125kHz RFID Long Range Proximity Reader

Shenzhen JUTAI GP99 is a 125kHz RFID Long Range (1300mm) proximity reader designed for extended range access control applications.

Features:

  • Reading Range: Boasts a reading range of 90cm to 130cm.
  • Solar Film Penetration: Can effectively penetrate solar film, allowing seamless card reading from inside vehicles without window winding.
  • Power Supply: Powered by an exceptional power supply.
  • Applications: Ideal for access control, car parking, and through - wall reading applications.

GP99 125 Khz LF Proximity Mid Range Reader Specifications:

  • Power Requirement: +12V DC (linear power supplies are recommended)
  • Interface: Wiegand 26 / Wiegand 34 / RS232 / RS485 or other optional
  • Typical Maximum Read Range: Range up to 1000mm or even longer in ideal conditions
  • Frequency: 125kHz
  • Transponder: Read Only
  • Audio/visual Indication: Buzzer output
  • Operating Temperature: -20℃ ~ +70℃
  • Color: Black

Application Features:

  • Solar Film Penetration: Can penetrate solar film (V - Kool40).
  • Auto Tuning Function: Features auto tuning function to compensate for the presence of metal and interference.
  • Reading Range: Offers an extended reading range from 90 cm to 130 cm.
  • Indicators: Equipped with bright LED indicators and a tuning LED bar.
  • Firmware Upgrade: Firmware is upgradable in the field.
  • Waterproof Design: Has an IP - 65 waterproof housing design.
  • Power Supply: Includes a high - quality power supply with a noise filter.
  • Loop Inductive Function: Optional loop inductive function.
  • Anti - Rereading Function: Incorporates an anti - rereading function.
  • Anti - Passback Function: Supports local anti - Passback function between 2 reader units.
  • User and Record Storage: Can store up to 26,000 users and 100,000 records (cycle/lost).
  • Time Zone Groups: Can set 64 different time zone groups according to customer requirements.
  • Security Enhancement: CCTV system and image function enhance the safety of the community and property.
  • Parking System Compatibility: Suitable for Hands - free parking systems.

GP99 Main Features:

  • High Sensitivity and Reliability: High sensitivity and reliable performance.
  • Transceiver Antenna: Built - in transceiver antenna for maximum performance.
  • Maximum Effective Distance: Maximum effective distance up to 1000mm.
  • Decoding Time: Decoding time of less than 100ms.
  • Power Dissipation: Low power dissipation with a single power supply.
  • Multiple Output Formats: Multiple output formats available.
  • Buzzer: Built - in buzzer.
  • Environmental Protection: Potted for environmental protection.

Trouble Shooting:

  • When powered up, the Reader undergoes a self - test with the buzzer beeping continuously to ensure the best reading performance. When the self - test ends, the buzzer will give a single beep and the Reader enters the normal working mode. If the buzzer continues beeping without stopping for a long time, please turn off the power and check the environment and power supply to ensure the reader is in a good working condition. In case of problems, follow these steps:
  • Failure to finish self - test with the buzzer beeping continuously or with a short reading distance:
    • Turn off the power to the reader.
    • Check the power input connections to ensure they are not reversed.
    • Check the power supply to comply with the specification.
    • If the supply has a current limit, set it to 350mA.
    • Ensure to install the reader in an environment without large area conductors nearby or on a conductive surface. In the self - test state, do not apply any tags in the Reader's functional area.
    • Try to change the installation of the Reader to another place to check if the trouble still exists.

Operation:

  • Proximity cards are presented to the front of this ID long distance reader. When the proximity cards are read, the beeper sounds and the message is transmitted to the Host computer or interface panes.

Indoor/Outdoor Design:

  • The Reader 5150 is sealed in a rugged, weatherized epoxy resin enclosure designed to withstand harsh environments and provide a high degree of vandal resistance for reliable performance anywhere.

Power Supply:

  • The Reader can be operated over the full range of 11.0 ~ 15.0V DC. If the reader power exceeds 15V DC or AC power is applied, it may not operate or cause circuit damage. It is recommended to use 12VDC linear power supplies.
  • Noise from devices such as switching power supplies, computer monitors, and arc welders can reduce the read range or make the unit inoperable. Keep these devices at least 10 ft away from the reader. With the Reader and power supply wired together, apply power to the reader.

Caution:

  • 12V DC linear power supplies are recommended. Failure to provide an adequate current capacity power supply will result in reduced read range or circuit damage.
  • The read range will be reduced if located on metal surfaces or in the vicinity of metal objects, or if metal is installed nearby or affected by switching power supplies, computer monitors, electrical and electronic equipment, motors, and generators, etc.



125kHz Middle Range Em Proximity Reader for Car Parking with Em Cards

125kHz Middle Range Em Proximity Reader for Car Parking with Em Cards

1300mm Range EM Cards Proximity Reader For Car Parking System Access Control 2

125kHz Middle Range Em Proximity Reader for Car Parking with Em Cards125kHz Middle Range Em Proximity Reader for Car Parking with Em Cards125kHz Middle Range Em Proximity Reader for Car Parking with Em Cards125kHz Middle Range Em Proximity Reader for Car Parking with Em Cards125kHz Middle Range Em Proximity Reader for Car Parking with Em Cards125kHz Middle Range Em Proximity Reader for Car Parking with Em Cards

1300mm Range EM Cards Proximity Reader For Car Parking System Access Control 9

1300mm Range EM Cards Proximity Reader For Car Parking System Access Control 10

1300mm Range EM Cards Proximity Reader For Car Parking System Access Control 11

1300mm Range EM Cards Proximity Reader For Car Parking System Access Control 12

1300mm Range EM Cards Proximity Reader For Car Parking System Access Control 13


125kHz Middle Range EM Proximity Reader for Car Parking with EM Cards

Enhance car access control with this RFID proximity reader. Ideal for car parking management systems, this reader supports EM cards for secure access. Easily integrate with your existing system via Serial Port or Wiegand interface.



125kHz Middle Range Em Proximity Reader for Car Parking with Em Cards

Product Description: JUTAI Smart Tag Parking System

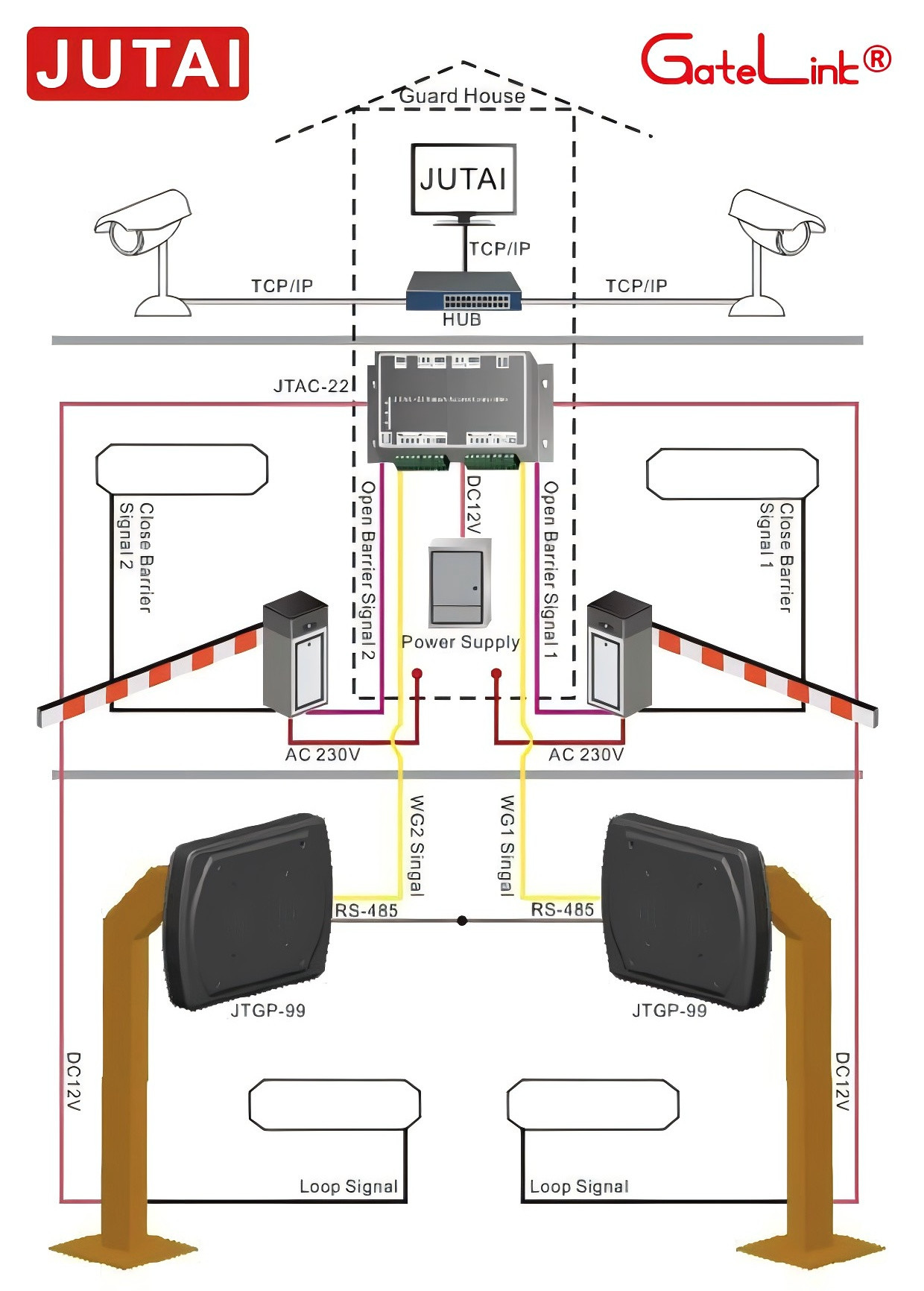

Working Principle

  • When a vehicle approaches the entry proximity reader loops, the JUTAI smart tag communicates with the reader.
  • The reader sends the tag signal data to the controller via the Wiegand interface, allowing the barrier to open if the card ID is valid.
  • Upon passing the second loop under the entry barrier, the barrier arm automatically lowers.
  • The manager Centre software displays real-time transaction events and enables the export of EXCEL reports.
  • At the exit, when the vehicle reaches the exit proximity middle range reader loops, the JUTAI Smart tag communicates with the reader.
  • Similar to the entry process, the barrier opens if the card ID is valid, and the barrier arm lowers after the vehicle passes the second loop under the exit barrier.

Experience seamless and efficient parking management with the JUTAI Smart Tag Parking System from Shenzhen Jutai Comm Co., Ltd.

125kHz Middle Range Em Proximity Reader for Car Parking with Em Cards

Certificate for 125kHz Middle Range EM Proximity Reader for Car Parking with EM Cards by Shenzhen Jutai Comm Co., Ltd.

125kHz Middle Range Em Proximity Reader for Car Parking with Em Cards
Enhance car parking security with our 125kHz Middle Range EM Proximity Reader. Ideal for RFID access control systems.
