1300mm Reading Distance IP65 Waterproof EM Proximity Reader with Solar Film Penetration for Car Parking Access Control
Product Details
| Reading Distance | 130cm | Power Supply | DC12V/1A |
|---|---|---|---|
| Working Current | ≤450mA | Baud Rate | 9600, N, 8, 1 |
| Working Frequency | 125KHz | Relative Humidity | ≤90% |
| Output Mode | Wiegand 26/34 | Waterproof | IP65 |
| Cover Material | ABS+PC, UV Protection | Specification | 50.3*46.8*10.6cm (Packing Size) |
| Card Type | EM | Interface | Serial Port, Wiegand |
| Highlight | Car Parking System 1300mm Proximity Reader,1300mm Range EM Cards Proximity Reader,Access Control EM Cards Proximity Reader |
||
Product Description
1300mm Range EM Cards Proximity Reader For Car Parking System Access Control
Product Overview
GP-99 EM Cards 1.5m Middle Range Proximity Reader for Car Parking Access Control System
Shenzhen JUTAI GP99 is a 125kHz RFID Long Range (1300mm) proximity reader designed for extended range access control applications, ideal for car parking management systems with EM card compatibility.
Key Features
- Reading Range: 90cm to 130cm (up to 1000mm in ideal conditions)
- Solar Film Penetration: Effectively penetrates solar film for seamless card reading from inside vehicles
- Auto Tuning Function: Compensates for metal presence and interference
- IP-65 Waterproof Housing: Designed for harsh environments
- Multiple Interfaces: Wiegand 26/34, RS232, RS485 or other optional interfaces
- Firmware Upgrade: Field-upgradable firmware
- Anti-Rereading & Anti-Passback Functions: Enhanced security features
- High Capacity: Stores up to 26,000 users and 100,000 records
Technical Specifications
| Specification | Details |
|---|---|
| Power Requirement | +12V DC (linear power supplies recommended) |
| Frequency | 125kHz |
| Transponder | Read Only |
| Operating Temperature | -20℃ ~ +70℃ |
| Decoding Time | Less than 100ms |
| Color | Black |
| Housing Rating | IP-65 Waterproof |
Application Features
Solar Film Penetration: Can penetrate solar film (V-Kool40) for easy vehicle access
Time Zone Management: Supports 64 different time zone groups for flexible access control
Security Integration: Compatible with CCTV systems and image functions for enhanced safety
Parking System Compatibility: Ideal for hands-free parking systems and through-wall reading
Product Images

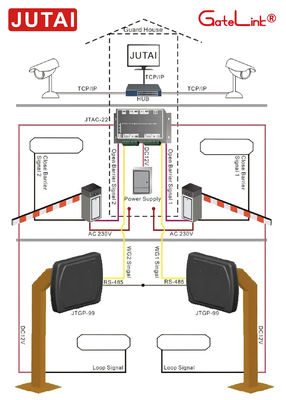

JUTAI Smart Tag Parking System Working Principle
Entry Process: When a vehicle approaches the entry proximity reader loops, the JUTAI smart tag communicates with the reader. The reader sends tag signal data to the controller via Wiegand interface, allowing the barrier to open for valid card IDs. The barrier arm automatically lowers after the vehicle passes the second loop.
Exit Process: Similar to entry process - when the vehicle reaches the exit proximity reader loops, communication occurs between the smart tag and reader, with barrier opening for valid IDs and automatic lowering after vehicle passage.
Management: Manager Centre software displays real-time transaction events and enables EXCEL report export for comprehensive parking management.
Operation & Installation Notes
Power Up Self-Test: Upon power up, the reader undergoes self-test with continuous buzzer beeping. When self-test ends, a single beep indicates normal working mode. Continuous beeping indicates issues requiring power cycle and environmental checks.
Power Supply: Operates at 11.0-15.0V DC. Exceeding 15V DC or using AC power may cause damage. Use 12VDC linear power supplies with adequate current capacity.
Environmental Considerations: Read range reduces on metal surfaces or near metal objects. Keep at least 10 ft away from noise sources like switching power supplies, computer monitors, and electrical equipment.
Certification & Documentation
About Shenzhen Jutai Comm Co., Ltd.
Shenzhen Jutai Comm Co., Ltd. is a high-tech private enterprise specializing in research & development, production, and sales of security products. We focus on RFID system solutions for door access control, parking management, and elevator control.
Our innovative automatic door sensor and gate automation solutions, based on Wireless technology and mobile applications, set us apart in the industry. We also develop and supply 4G and Cloud-based one-stop station center management systems.
We provide high-quality products, cutting-edge application concepts, complete system solutions, comprehensive technology support, and excellent after-sales service to create safer and more convenient living spaces.
