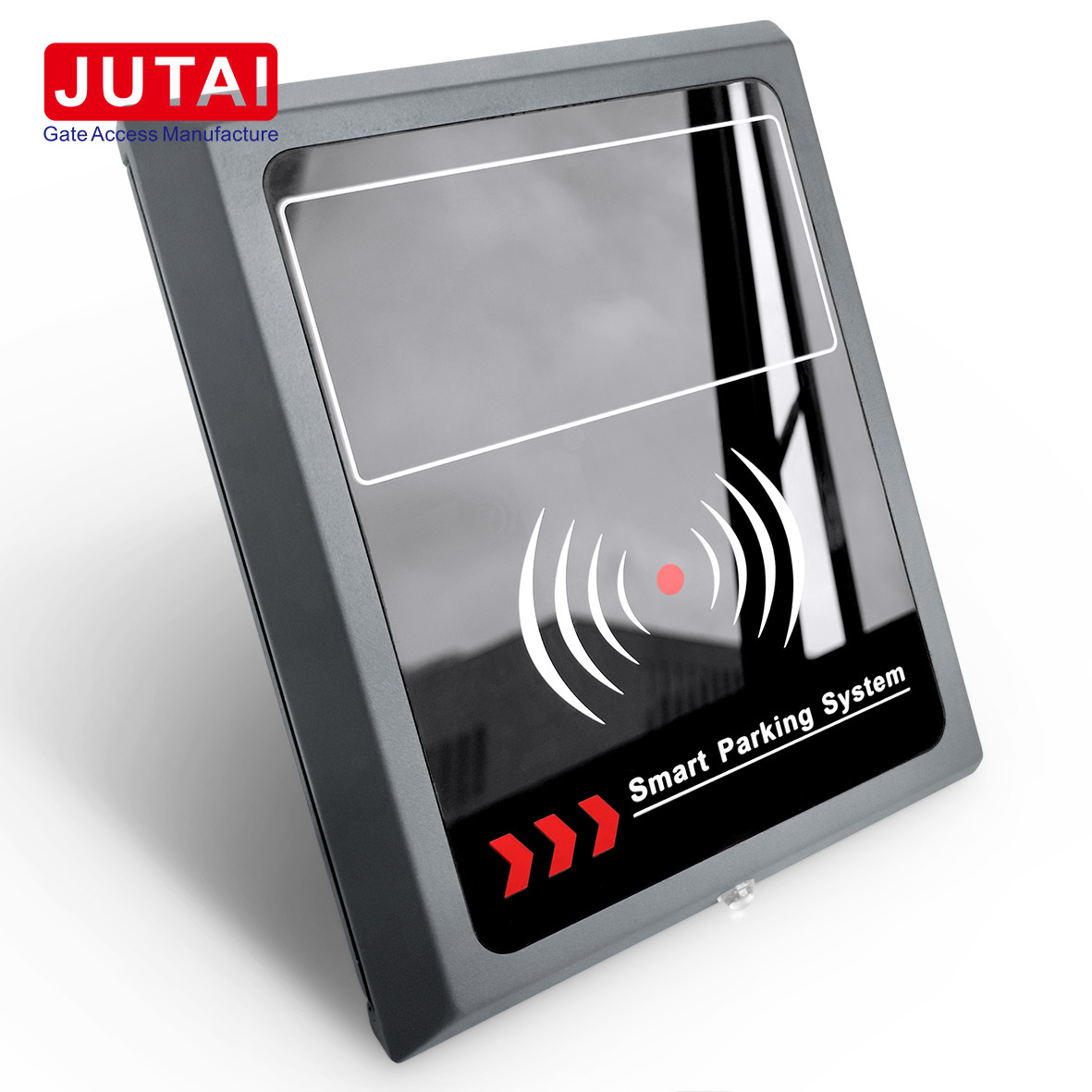

Encrypted RFID Bluetooth Card Reader 15m Distance For Parking Access Control

  • Encrypted RFID Bluetooth Card Reader 15m Distance For Parking Access Control
Place of Origin China
Brand Name JUTAI
Certification CE
Model Number BR-8
Minimum Order Quantity 1
Price Negotiation
Packaging Details Cartoon
Delivery Time 5 - 8 working days
Payment Terms T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay
Supply Ability 1000 pieces per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Voltage DC 12-24V/2A Working Current <500mA
Interface RS485, Wg26/G34, RS232(Optional) Recognition Speed 6okm/H(Max)
Recognition Angle <60 Degree Output 1 Relay Output Interface
Serial Communication Baud Rate 9600BPS, N, 8, 1 Waterproof IP65
Input 1 Input Trigger Interface Card Reader Interval 1s-15s (Adjustable)
Working Frequency 433MHz Specification 40.5*30*10.5cm
Highlight

15m Distance Bluetooth Card Reader

,

Encrypted Bluetooth Card Reader

,

Parking Access Control Bluetooth Card Reader
Leave a Message
Product Description
Product Description:


Introduction:

  • The BR-8 Bluetooth Card Reader from Shenzhen JUTAI Comm Co., Ltd. is designed for access control, particularly for parking entry control. It works in conjunction with Bluetooth cards to provide a seamless and secure access experience.



Advantages:

  • Long Battery Life: The Bluetooth Card Reader has an ultra-low power consumption design, ensuring a battery life of at least 2.5 years, which is longer than conventional Bluetooth cards.
  • High Security: It incorporates high-level encryption technology, making it difficult to copy and enhancing overall security.
  • Sleek Design: The ultra-thin streamlined design not only looks classic but also reduces transportation costs.
  • Enhanced Stability: Innovative hardware development technology ensures high product stability and consistent performance.
  • Complete Solutions: JUTAI provides comprehensive hardware and software solutions, including cloud access control systems and advanced encryption technology, for maximum security.
  • Super Penetration Ability: The reader offers fast card reading and penetration even through explosion-proof membranes, ensuring stable performance in various conditions.
  • Fast Speed Car Detection: Unique chip control programs enable quick response and detection of fast-moving vehicles.
  • Rainy Day Application: It provides a safe and convenient solution for rainy weather, eliminating the risk of exposure to theft or wet clothes.

Parameters:

Parameter Bluetooth Card Reader Bluetooth Card (Regular Version) Bluetooth Card (Low Power Version)
Operating Voltage DC12 - 24V/2A DC3V DC3V
Working Current <500mA 7uA (Regular Version) 4uA (Low Power Version)
Operating Temperature -20 ~ +60°C N/A N/A
Working Humidity 5% ~ 90% N/A N/A
Waterproof And Dustproof Grade Ip65 N/A N/A
Receive Sensitivity -110dbm N/A N/A
Serial Communication Baud Rate 9600bps, N, 8, 1 N/A N/A
Communication Interface RS485, Wiegand26/Wiegand34, RS232 (Optional) N/A N/A
Working Frequency 433MHz 433MHz 433MHz
Recognition Speed 60km/h (Max) N/A N/A
Card Reading Interval 1s - 15s (Adjustable) N/A N/A
Card Reading Distance 1 - 15m 1 - 15m 1 - 15m
Recognition Angle <60° N/A N/A
Modulation ASK N/A N/A
Output 1 Relay Output Interface N/A N/A
Input 1 Input Trigger Interface N/A N/A
Device Address 1 - 15 N/A N/A
Installation Method Vertical Installation N/A N/A
Size 260 * 210 * 59mm 43 * 61.5 * 7.6mm 43 * 61.5 * 7.6mm
Weight 2KG 16g (Card + Card Holder) / 25g (Card + Sucker) 16g (Card + Card Holder) / 25g (Card + Sucker)



The BR-8 Bluetooth Card Reader, along with the Bluetooth cards, offers a reliable and secure access control solution for parking entry. With its advanced features and parameters, it provides enhanced convenience and safety. JUTAI's commitment to innovation and quality makes it a trusted choice for access control management.

Bluetooth RFID Smart Card Reader for Door Access Control



Specifications

Operating Voltage DC 12-24V/2A
Working current <500mA
Operating temperature -20~+60°C
Working humidity 5%~90%
Waterproof and dustproof grade IP65
Receive sensitivity -110dbm
Serial communication baud rate 9600bps,N,8,1
Communication Interface RS485,Wiegand26/Wiegand34,RS232(optional)
working frequency 433MHz
Recognition speed 60km/h(max)
Card reading interval 1s-15s (Adjustable)
Card reading distance 1-15m
Recognition angle <60°
Modulation ASK
Output 1 relay output interface
Input 1 input trigger interface
Device address 1-15
Installation method Vertical installation
Size 260*210*59mm
weight 2KG





Bluetooth RFID Smart Card Reader for Door Access Control



Bluetooth RFID Smart Card Reader for Door Access Control




Technical Parameters Of Bluetooth RFID Smart Card Reader For Door Access Control


Bluetooth RFID Smart Card Reader for Door Access Control
Technical Parameters Of RFID Bluetooth Reader In Parking Lot And Access Control
Bluetooth RFID Smart Card Reader for Door Access ControlBluetooth RFID Smart Card Reader for Door Access Control



Encrypted RFID Bluetooth Card Reader 15m Distance For Parking Access Control 6

Encrypted RFID Bluetooth Card Reader 15m Distance For Parking Access Control 7
