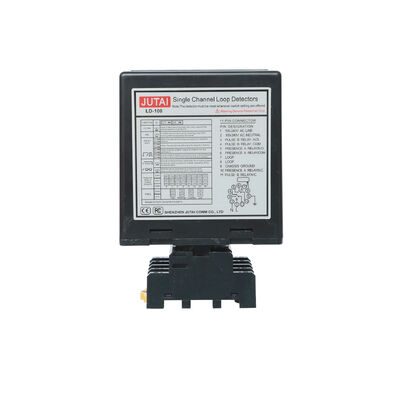

Industrial Loop Detector for Forklift Truck Detection 12 24V DC 100 240V AC Relay Output

Place of Origin	China
Brand Name	JUTAI
Certification	CE
Model Number	LD-100
Minimum Order Quantity	1
Price	Negotiable
Packaging Details	Carton Parcking(13.58.55cm)/0.3kg/unit
Delivery Time	3-5 working days after receipt the payment
Payment Terms	T/T,L/C,D/A,D/P,Western Union,Paypal,,MoneyGram,Alipay
Supply Ability	10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Power Supplu	12-24v	Sensitivity	20-2000μH
Sensory Regulation	6 Way Selectable/Highest0.010%DL/L/ Lowest 2.56%DL/L	Frequency	Four Step Switch Selectable20-80KHz
Operation Tempts	-40℃ To +70℃ / (-111°F To +158°F)	Fault Output	Blinks Slowly: May Indicate A Short Circuit Or Insufficient Number Of Turns Blinks Faster: May Indicate An Open Loop Or Excessive Number Of Turns
Response Times	Turn-on 10-90MS / Turn-off 10-90MS	Relay	Presence Relay / Fault Relay
Highlight	Industrial loop detector for forklift trucks , 12-24V DC loop detector with relay , 100-240V AC loop detector relay output

Leave a Message

Product Description

Industrial Loop Detector for Forklift Truck Detection 12 24V DC 100 240V AC Relay Output 0

Industrial Loop Detector for Forklift Truck Detection 12-24V DC 100-240V AC Relay Output

Designed specifically for industrial environments, the industrial loop detector (also known as a forklift loop sensor) is a high-reliability vehicle detection solution tailored to identify forklifts, heavy-duty trucks, and industrial vehicles with unmatched accuracy. Whether deployed in warehouses, logistics centers, loading docks, or manufacturing plants, this versatile device supports both 12-24V DC and 100-240V AC power inputs, paired with dual relay outputs (Presence + Pulse/Fault) to seamlessly integrate with industrial automation, access control, and safety systems.

Crafted to withstand the rigors of industrial operations, the forklift loop detector works with embedded inductive loops to detect vehicles of all sizes—from compact forklifts to large cargo trucks—without false triggers. It features 16 levels of adjustable sensitivity (0.010% to 2.56% DL/L) and a 4-step selectable frequency range (20–80 kHz), allowing precise calibration to suit different loop configurations, floor materials, and vehicle weights. The device’s rugged, weatherproof housing ensures stable performance in extreme industrial conditions, with an operating temperature range of -40°C to +70°C and resistance to humidity up to 95% (non-condensing).

Core Features of Industrial Forklift Loop Detector

Specialized Industrial Vehicle Detection: Optimized for forklifts, cargo trucks, and heavy-duty industrial vehicles, ensuring reliable sensing even in high-traffic warehouse or logistics environments.
Dual Power Compatibility: Supports 12-24V DC (ideal for mobile or off-grid setups) and 100-240V AC (for permanent industrial installations), offering flexible deployment options.
Dual Relay Outputs: Presence Relay for continuous vehicle monitoring (e.g., loading dock occupancy) and Pulse/Fault Relay for trigger actions (e.g., door activation, alarm triggers), enhancing system integration.
Precision Tuning: 16-level adjustable sensitivity and selectable frequency range eliminate interference from metal structures, machinery, or adjacent loops, ensuring accurate detection.
User-Centric Design: LED indicators (red for power, green for detection), a manual reset button, and clear wiring diagrams simplify installation, operation, and troubleshooting for on-site teams.
Industrial-Grade Durability: Weatherproof housing and wide temperature/humidity tolerance make it suitable for indoor and outdoor industrial use, from cold storage facilities to outdoor loading yards.

Technical Specifications

Parameter	Specification
Product Name	Industrial Loop Detector / Forklift Loop Sensor
Model	LD100 (100–240V AC) / LD102 (12–24V DC)
Power Supply	100–240V AC (LD100) / 12–24V DC (LD102)
Target Vehicles	Forklifts, industrial trucks, cargo vehicles, heavy-duty equipment
Frequency Range	20–80 kHz (4-step selectable)
Sensitivity	16-level adjustable (0.010% to 2.56% DL/L)
Response Time	10–90 ms (on/off)
Operating Temperature	-40°C to +70°C
Relay Output	Presence Relay (SPDT) + Pulse/Fault Relay (SPDT)
Status Indicators	Power LED (Red) + Detection LED (Green)
Reset Function	Manual reset button
Humidity Tolerance	Up to 95% RH (non-condensing)
Loop Inductance Range	20–2000 µH
Maximum Installation Distance	Up to 30 m (shielded cable recommended for distances >10 m)
Housing Rating	Weatherproof (IP-rated for industrial environments)
Warranty	2-year manufacturer’s warranty
Technical Support	24/7 industrial technical support

Industrial Applications

This industrial loop detector is a game-changer for:

Warehouse & Logistics Centers: Forklift access control, loading dock vehicle detection, and internal traffic flow management to prevent collisions and optimize operations.
Manufacturing Plants: Industrial vehicle presence detection for automated production lines, safety gate control, and restricted area access management.
Distribution Yards: Heavy-duty truck and forklift counting, loading/unloading bay occupancy monitoring, and logistics scheduling systems.
Cold Storage Facilities: Reliable vehicle detection in low-temperature environments (down to -40°C) for freezer or refrigerated warehouse access.
Mining & Construction Sites: Detection of industrial vehicles (forklifts, dump trucks) for perimeter security, weighbridge triggering, and site access control.
Agricultural Facilities: Farm equipment (industrial forklifts, cargo trucks) detection for storage yard access and logistics management.
EV Manufacturing & Warehousing: Forklift and heavy vehicle detection for battery production lines, EV component storage, and loading dock safety.

Built for industrial reliability and flexibility, this loop detector delivers consistent performance in the most demanding workplaces. Its dual power options, precise detection capabilities, and rugged design make it the top choice for facility managers, engineers, and industrial automation professionals seeking a trusted solution for forklift and heavy vehicle detection. Backed by a 2-year warranty and round-the-clock technical support, it minimizes downtime and maximizes operational efficiency across industrial sectors.

Industrial Loop Detector for Forklift Truck Detection 12 24V DC 100 240V AC Relay Output 1

DIP Switch Configuration

DIP 1 and 2 Delay and sensitivity boost
DIP 3 and 4 Relay B output mode pulse presence test
DIP 5 Auto reset 30 min or permanent presence
DIP 6 to 8 Relay A delay 0 to 30 sec
DIP 9 and 10 Frequency selection High Low to avoid interference

Loop Installation Guide

Loop Perimeter	Recommended Turns
3 to 4 m	6 turns
4 to 6 m	5 turns
6 to 10 m	4 turns
10 to 20 m	3 turns
Over 20 m	2 turns

Why Choose JUTAI Loop Detector

15 plus years of manufacturing expertise
Rigorous quality control and pre shipment testing
OEM ODM customization available
Small and bulk orders accepted
2 year warranty and reliable after sales support
Market protection for distributors

Order Now and Enhance Your Vehicle Detection System with JUTAIs Professional Loop Detector

Industrial Loop Detector for Forklift Truck Detection 12 24V DC 100 240V AC Relay Output 2
Switch 2 (Dipswitch Settings)

1.DIP 1 & DIP 2 Setting Special Functions

2.DIP 3 & DIP 4 Setting Relay B Output

3. DIP 5 Setting Automatic Reset

4. DIP 6 & DIP 7 & DIP 8 Setting Relay A Delay
Industrial Loop Detector for Forklift Truck Detection 12 24V DC 100 240V AC Relay Output 6

5. DIP 9 & DIP 10 Setting Frequency (40 K to 100 KHz). Used to avoid the interference

Loop Installation:

Trouble Shooting:

Compared to other brands

Mass Production:

Our production line ensures efficient mass production, rigorous quality control, and thorough pre-shipment testing to deliver Loop detector products of the utmost perfection.

Industrial Loop Detector for Forklift Truck Detection 12 24V DC 100 240V AC Relay Output 11

LD-100 single channel, boxed, 1 type 11pin connects 100-240VAC(EU standard)
LD-102 single channel, boxed, 1 type 11pin connects 12-24VADC(EU standard)
LD-105 single channel, boxed, 2 type 11pin connects 100-240VAC(USA standard)
LD-106 single channel, boxed, 2 type 11pin connects 12-24VADC(USA standard)

Industrial Loop Detector for Forklift Truck Detection 12 24V DC 100 240V AC Relay Output 13
