EM Cards RFID Middle Range Car Parking Reader
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Reading Distance | 65-100cm | Power Supply | DC12V/1A |
|---|---|---|---|
| Working Current | ≤450mA | Baud Rate | 9600, N, 8, 1 |
| Working Frequency | 125kHz | Relative Humidity | ≤90% |
| Output Mode | Wiegand 26/34, RS232/RS485 | Waterproof | IP65 |
| Cover Material | ABS+PC, UV Protection | Product Size | 26*26*3.5cm |
| Highlight | Middle Range Car Parking Reader,Car Parking Reader 100cm,EM Cards Reader 100cm |
||
Product Description

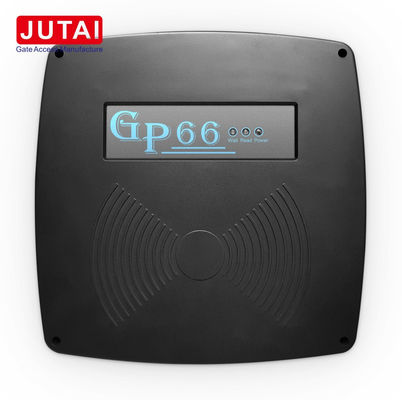

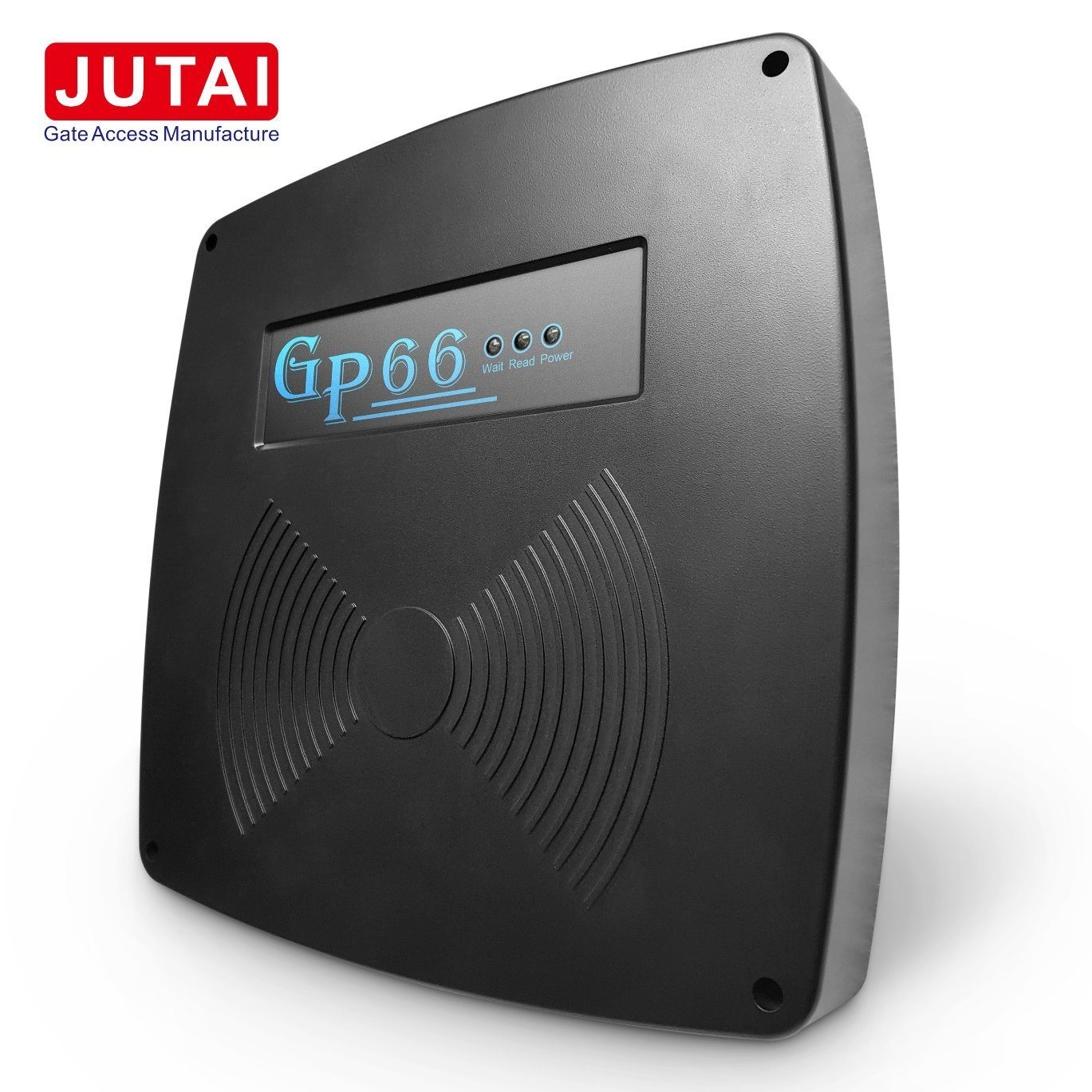

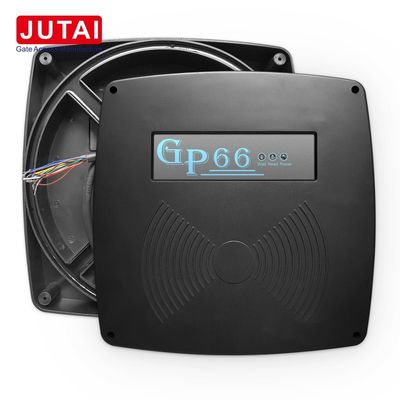

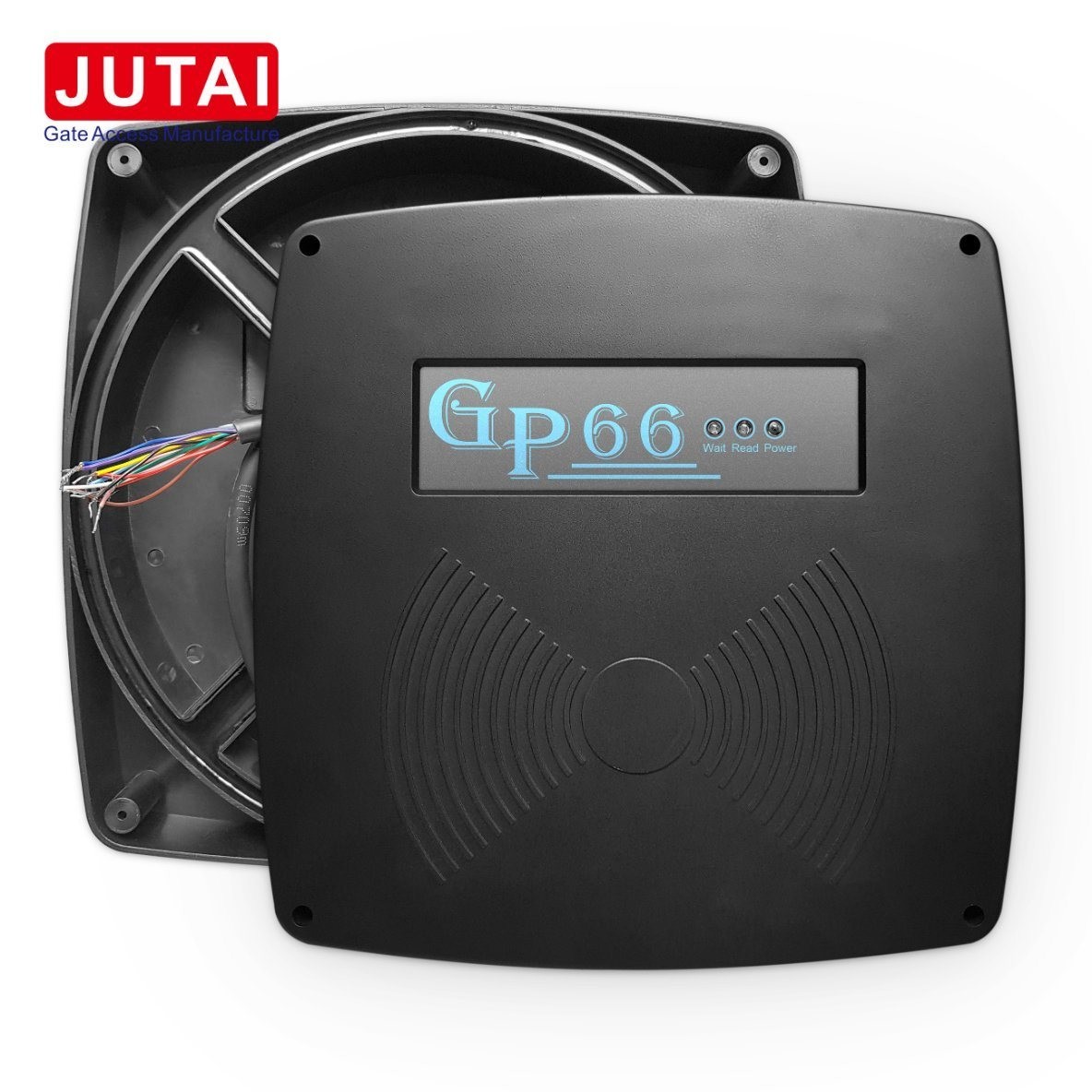

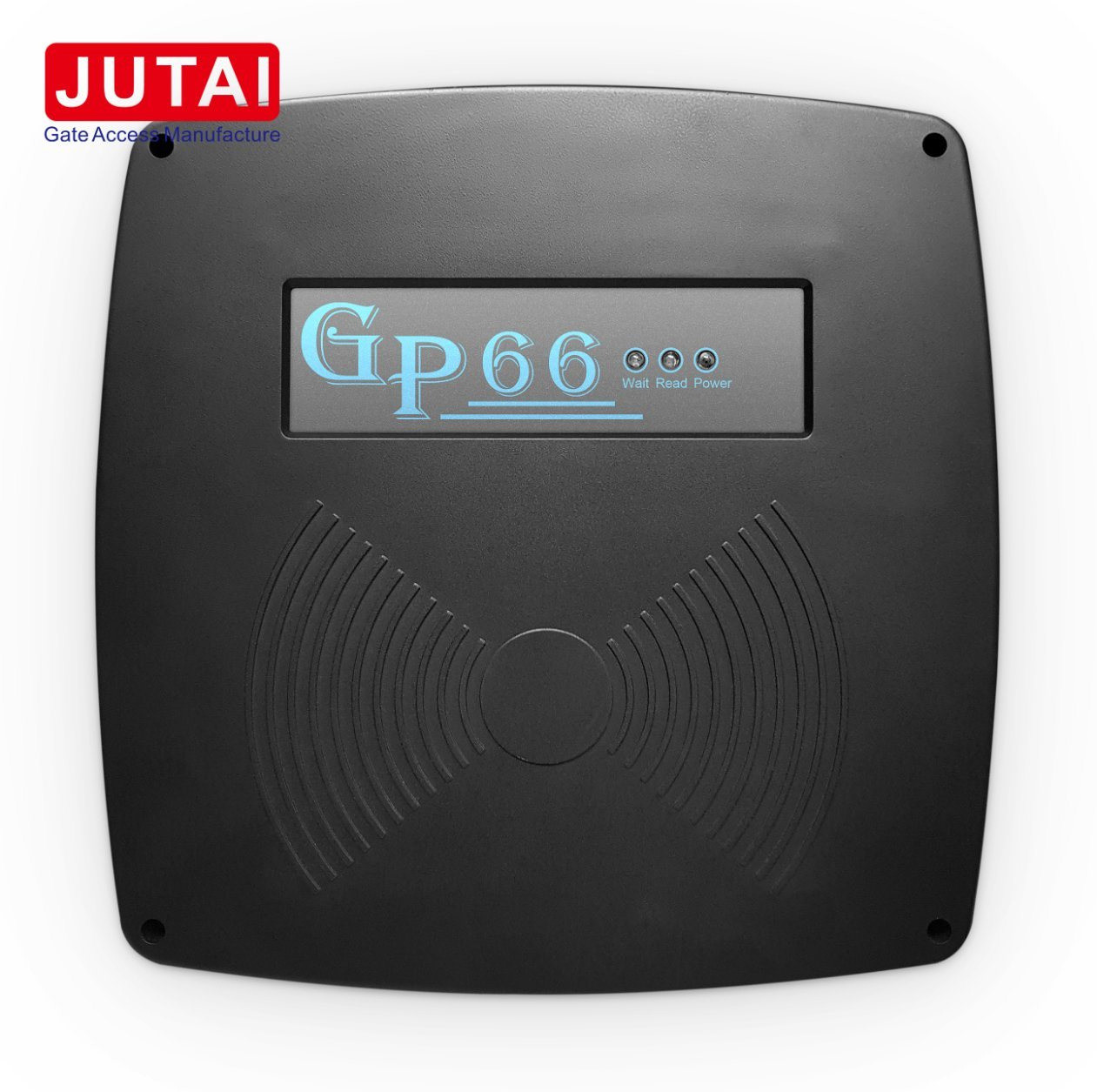

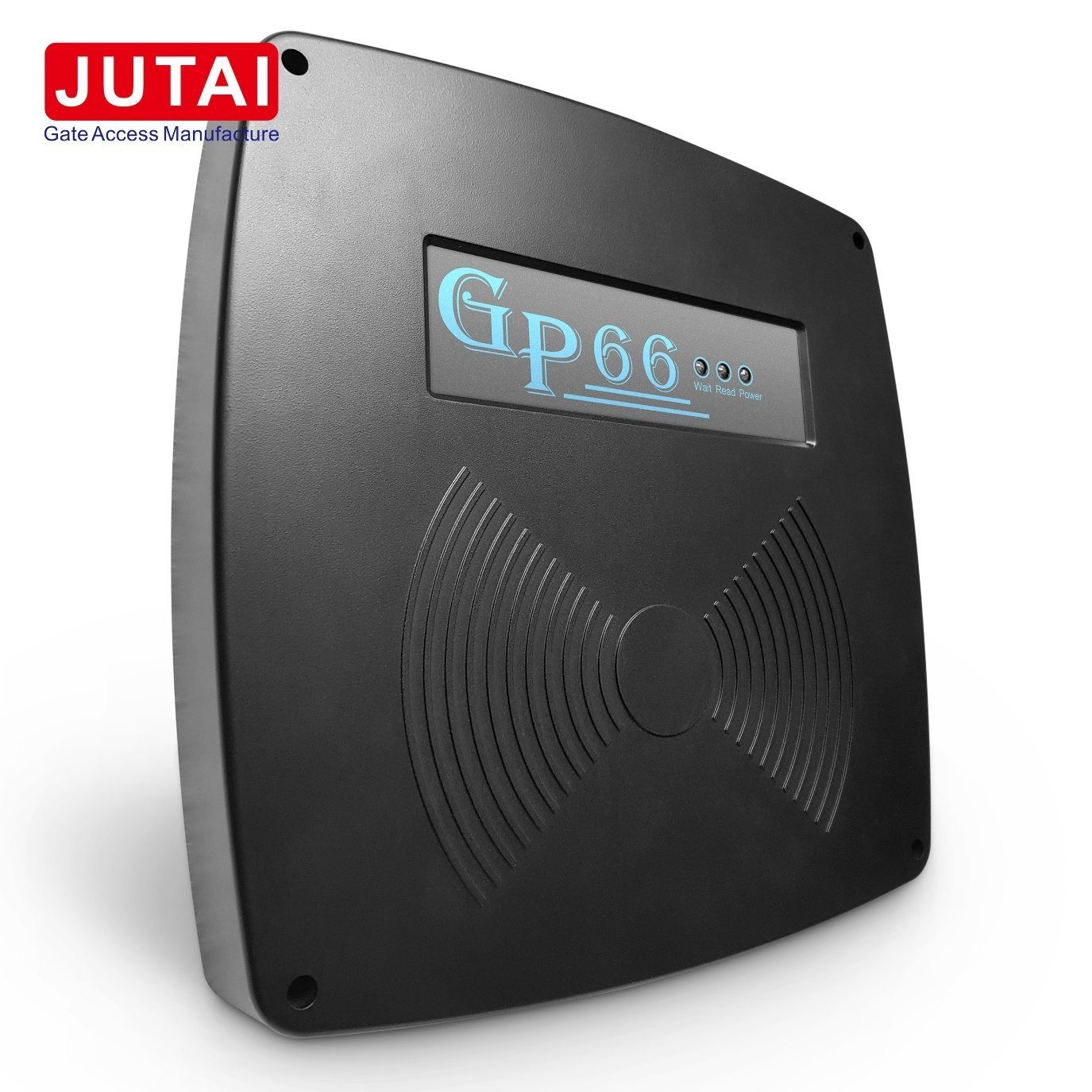

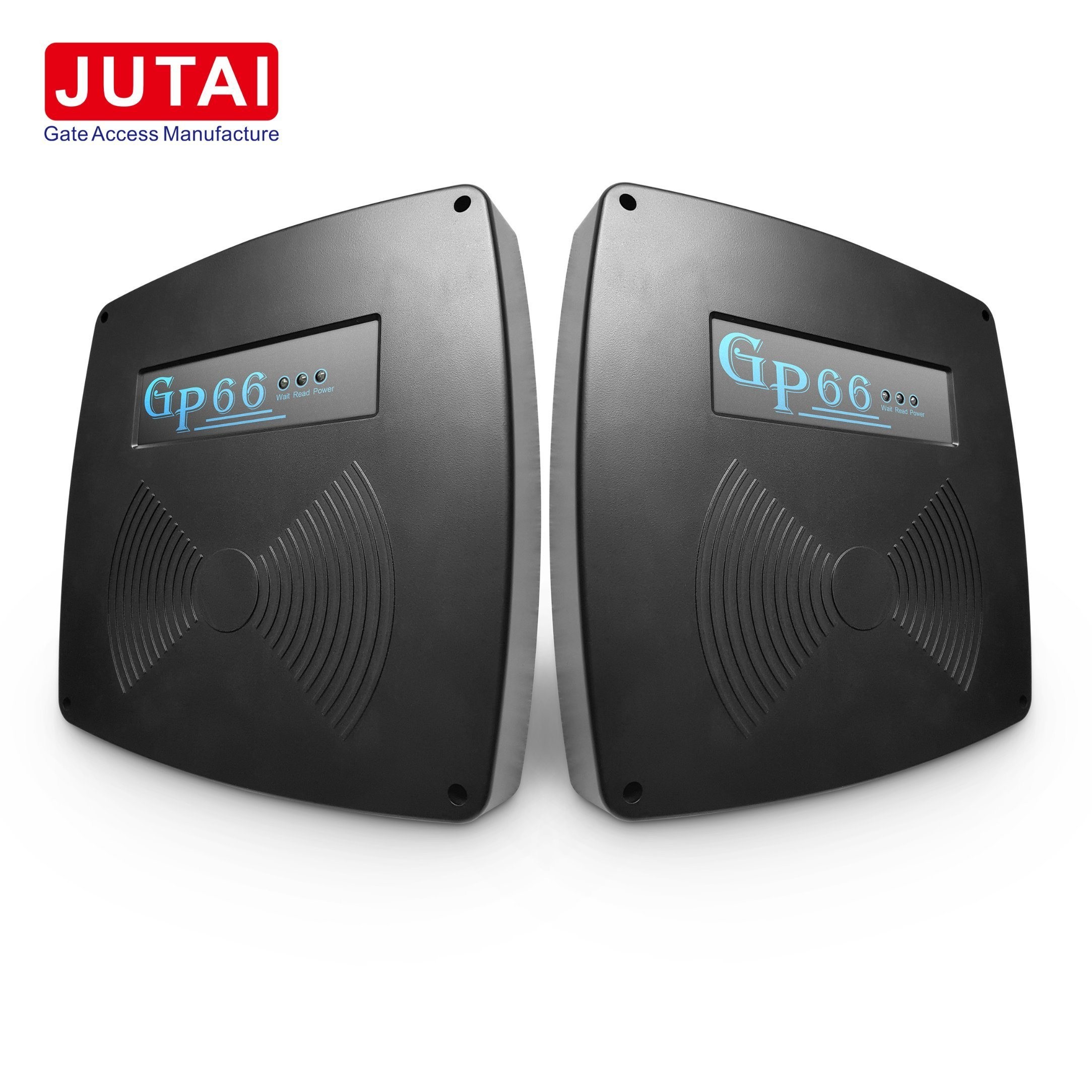

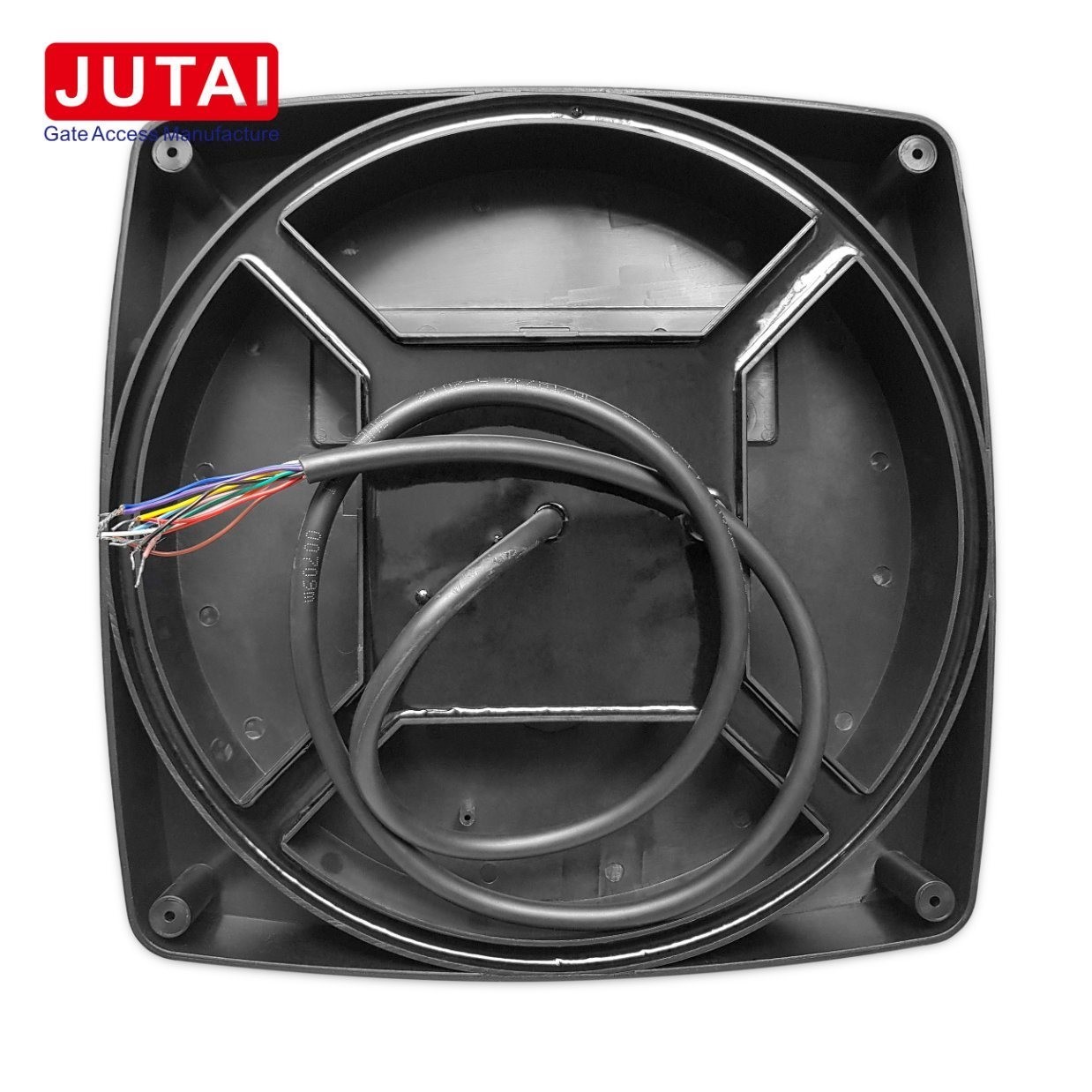

Em Cards RFID Middle Range Car Parking Reader With distance 100cm
JUTAI 125KHZ proximity long range reader for gate access
Product Description
GP66 is a powerful extended JUTAI 125KHZ proximity long range reader RFID reader featuring small dimensions and a read range of up to 65cm. This RFID reader making it particularly suited to access control, car parking and through-wall reading applications. The same basic unit can be configured to output most of the common interface formats, including Wiegand 26 or 34 bits, RS232 or RS485(depends on the firmware)making it easy to upgrade the existing installations.
Features
Introducing the innovative application from Shenzhen Jutai Comm Co., Ltd. that offers a range of advanced features:
- Capable of penetrating solar film (V-Kool40)
- Auto tuning function to compensate for metal presence and interference
- Extended reading range from 65cm to 100cm
- Bright LED indicators and tuning LED bar for easy operation
- Field-upgradeable firmware for continuous improvements
- IP-65 waterproof housing design for durability
- High-quality power supply with noise filter included for reliable performance
- Optional loop inductive function for added versatility
- Anti-rereading function included for enhanced security
Specifications
| Interface | Wiegand 26 or 34 bits, RS232 or RS485 |
| Working Current | 120mA |
| Reading Range | 65-100cm |
| RFID Card Accepted | 125KHZ, 64bits, Manchester encoding |
| Power Supply input | 60Hz or 220V/50Hz |
| Output voltage | DC12V/5A |
| Dimensions | 259(w)*259(L)*36(D) mm |
| Housing material | ABS |
| Operating Temperature | -30℃ to 65℃ |
| Humidity | 0-95% relative humidity noncondensing |
| Warranty | 1 year |
Install the RFID EM 125kHz Proximity Middle Range Car Parking Reader with EM Cards from Shenzhen Jutai Comm Co., Ltd. Ideal for car access and management systems. Supports EM cards and offers secure access control.
Functions and Advantages
- Stronger and longer reading distance compared to other similar RFID readers
- Reading range up to 1 meter with strong working mode and anti-interference ability
- Can penetrate any brand solar film for an affordable RFID solution
- Totally hands-free access control solution with EM card and card sticker
- Strong ability to adapt to any environment with high-quality power supply
- Easy integration into any company access control system and upgrade old projects
