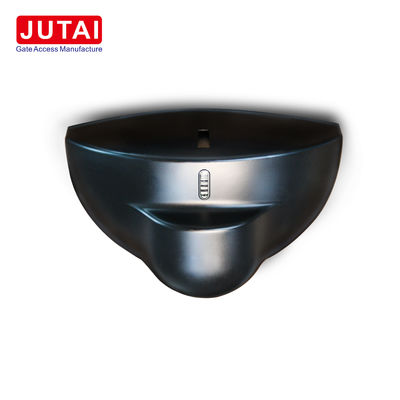

24.125GHz Motion Sensor For Automatic Door Dual Channel Flexible Mode
| Place of Origin | China |
|---|---|
| Brand Name | JUTAI |
| Certification | FDA, E-MARK, CE, ISO, FCC, RoHS, DOT, ASTM, AS/NZS, CCC, GS |
| Model Number | RD24-4 |
| Minimum Order Quantity | 1 |
| Price | Negotiation |
| Packaging Details | Cartoon |
| Delivery Time | 5-8 days |
| Payment Terms | T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay |
| Supply Ability | 1000 pcs per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Working Principle | Doppler Effect | Center Frequency | 24.125GHz |
|---|---|---|---|
| Maximum Installation Height | Below 5m | Detection Mode | One-Way Detection And Two-Way Detection, Pin Switch |
| Minimum Detection Speed | 5cm/S | Temperature Range | -25℃~+80℃ |
| Power Supply Voltage | 12-24VAC/DC±10% | Warranty | 3 Years |
| Highlight | 24.125GHz motion sensor for automatic door,24.125GHz automatic door motion sensor,automatic door motion sensor dual channel |
||
Product Description
Motion Sensor For Automatic Door Dual Channel Flexible Mode Two Year Warranty
Experience unparalleled performance with our advanced motion sensor, featuring a premium Rogers material circuit board and innovative 5 PIN Dual-channel configuration.
Dual-Channel Mastery:
- Channel 1: Precision direction recognition for filtering out opposite motion.
- Channel 2: Unmatched interference resistance, shielding against various environmental factors.
Rogers Material Excellence:
- Reduced insertion loss for optimal high-frequency performance.
- Minimized passive intermodulation for enhanced signal clarity.
- Lower conductor losses and improved thermal efficiency.
Customizable for Your Needs:
- Tailor-made sensor options ensure seamless integration into your automated door system.
Key Features:
1. Precision Directional Sensing: Utilizing advanced 24G integrated chips.
2. Intelligent Signal Discrimination: Minimizing unnecessary activations.
3. Flexible Bi-Directional Mode: Adaptable detection for diverse conditions.
4. Accurate Object Identification: Exceptional precision for optimized efficiency.
5. Robust Shock Absorption: Dependable performance under varied conditions.
6. Extended Detection Reach: Comprehensive coverage up to 8m for vehicles, 5m for adults.
7. Consistent Performance: Ensuring reliability and uninterrupted operation.
Experience effortless automatic door opening with our Sliding Door Accessory Microwave Motion Sensor Radar. Choose JUTAI for top-quality products and unmatched customer service.
Attributes: After-sales Service: Online Technical Support, Warranty Period: 3 Years, Structure: Other
Product parameters:
| Working principle | Doppler effect |
| Center frequency | 24.125GHz |
| Maximum installation height | Below 5m |
| Detection mode | One-way detection and two-way detection, pin switch |
| Minimum detection speed | 5cm/s |
| Relay output | COM, NO |
| Hold time | 0.5 s |
| Wire length | 2.5M |
Radar sensors for glass sliding doors are integral to automated systems, seamlessly detecting individuals or objects at entry points and enabling automatic door operation. Utilizing radar technology, these sensors emit wireless radiofrequency signals and analyze reflections to identify object presence and movement.
Operating akin to traditional radar systems, they emit radiofrequency signals, analyzing reflection time and frequency to determine object position, distance, and velocity. With detection ranges from centimeters to meters, they accommodate doors of various sizes and types.
Integrated into automatic systems, these sensors trigger door opening upon detecting approaching individuals or objects, streamlining accessibility and reducing physical interaction with mechanisms. They enhance safety by preventing door closure when individuals are nearby, minimizing accident risks.
Moreover, they support energy-saving initiatives by adjusting door operation based on occupancy, conserving energy in unoccupied areas. Resilient to environmental factors like light, temperature, humidity, and dust, they maintain reliability in diverse climates.
Offering versatility, radar sensors come in various types, including continuous-wave radar (CW radar) and pulse radar (Pulse radar), tailored to specific performance metrics and applications. In essence, sliding glass door radar sensors are critical for automated control, swiftly and accurately detecting individuals and objects to enhance safety, convenience, and energy efficiency.
