JUTAI GP-99 Long Range Proximity Card Reader
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Reading Distance | 130cm | Power Supply | DC12V/1A |
|---|---|---|---|
| Working Current | ≤450mA | Baud Rate | 9600, N, 8, 1 |
| Working Frequency | 125KHz | Relative Humidity | ≤90% |
| Output Mode | Wiegand 26/34 | Waterproof | IP65 |
| Cover Material | ABS+PC, UV Protection | Specification | 50.3*46.8*10.6cm (Packing Size) |
| Card Type | EM | Interface | Serial Port, Wiegand |
| Highlight | Proximity Card Reader For Car Parking,Long Range Proximity Card Reader,GP-99 Proximity Card Reader |
||
Product Description
JUTAI GP-99 Long-Range Proximity Card Reader For Car Parking
JUTAI GP-99 long-range proximity card reader for car parking vehicle access control system, reading range up to 130CM
Product Description
Shenzhen JUTAI GP-99 is an extended range 125kHz RFID Long Range proximity reader featuring a compact dimension. It can read range from 90cm to 130 cm depends on the interference on site. GP99 can effectively penetrate the solar film and allows MC-5 proximity cards to be read from inside the car without winding down windows. The unit will run an excellent power supply and marking it particularly suited to access control, car parking, and through-well reading applications. Ideal solution for car parking access control; residential and commercial building – no more hand getting wet during a rainy day and less car robbery risk at the entrance.
Product functions
JUTAI as the proximity long-range reader wholesale provides long-range RFID proximity readers which can be installed with barrier gate within 130cm distance. Using the credentialed RFID proximity reader, the barrier gate system will automatically open the gate when a vehicle is approaching the gate. JUTAI aims to manufacture the best long-range proximity reader and EM card for a non-stop vehicle parking system, access control system in all kinds of areas, create a totally hands-free ideal vehicle access control
JUTAI GP-99 long-range proximity card reader for car parking vehicle access control system, reading range up to 130CM, GP-99 proximity long rang reader more rad will run from an excellent power supply and making it particularly suited to access control, car parking applications. GP-99 can penetrate most-Solar Film V-KOOL to offer affordable long range reading without winding down car windows. JUTAI's long range reader has a competitive price and high quality.
Features
1. It can penetrate solar film (V-Kool40).
2. Auto tuning function to compensate for the presence of metal and interference.
3.Extended reading range from 90 cm to 130 cm.
4. Bright LED indicators, tuning LED bar.
5.Firmware upgradable in the field.
6.IP-54 waterproof housing design.
7. High-quality power supply with noise filter included.
8.Loop Inductive function optional.
9. Anti-rereading function included.
Specifications
| Interfaces | Wiegand 26 or 34 bits, RS232 or RS485 (depends on the firmware) |
| Reading Range | 90-130cm |
| RFID Cards Accepted | 125KHz, 64 bits, Manchester encoding |
| Power Supply input voltage | AC120/60Hz or 230V/50H |
| Output Voltage | DC 12V / 1A |
| Audio /Visual indication | Bright blue LED and Buzzer |
| Dimensions | 420 (w) x 320 (L) x 45(D) mm |
| Housing material | ABS |
Advantage
-

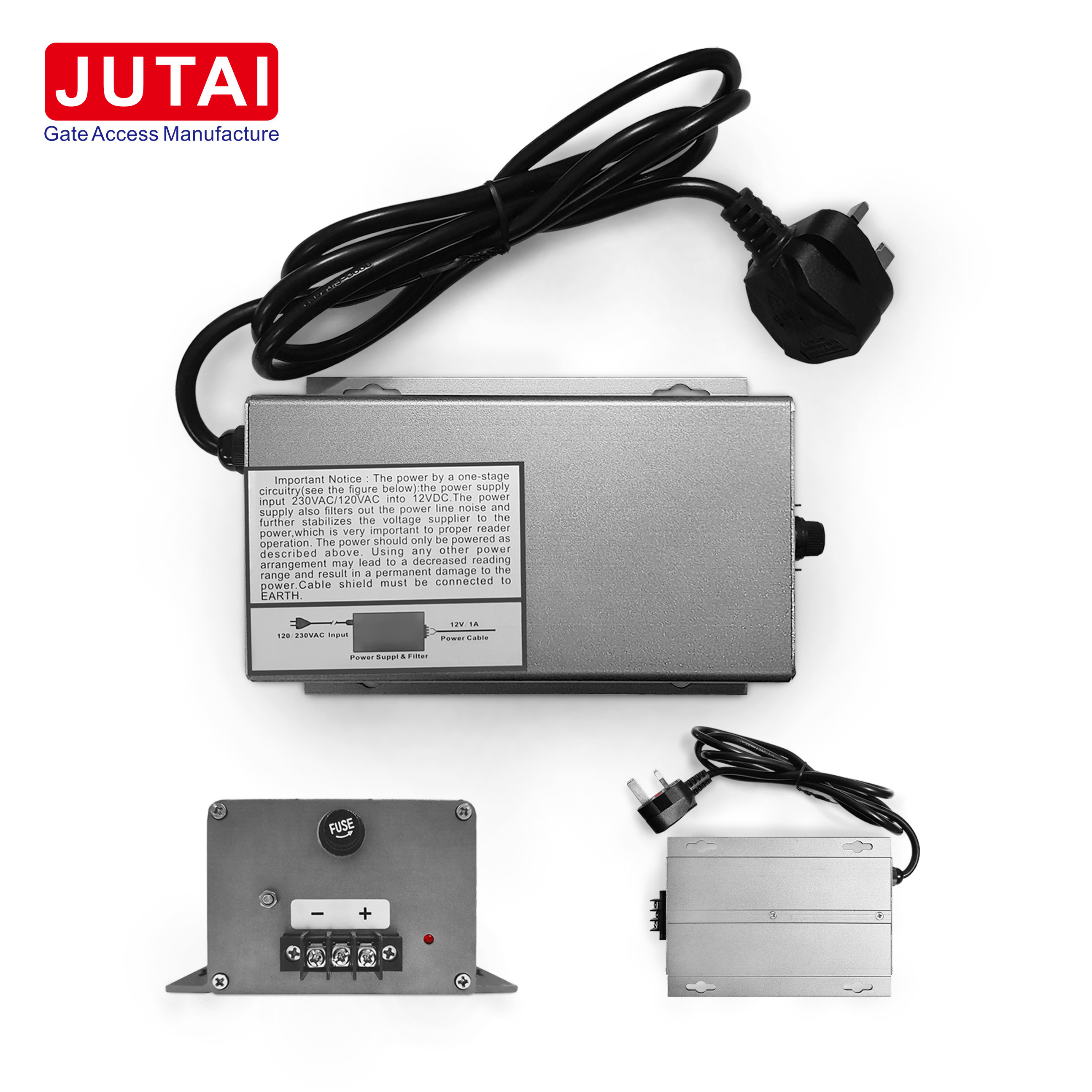

The GP-99 is equipped with a premium power supply
The interference signal is reduced by filtering technology to obtain interference-free current. It can reduce external environmental interference and has lightning protection.
-
Anti-reread function
When two readers are installed on the same site, the distance between the two readers is 1.8-2 meters, when one card reader reads the card ID in the inductive range, the other card reader will no longer read the card within 3s/10s. This function is mainly used to solve the problem of two card reader interferences with the relatively close distance between the entrance and exit of the parking lot.
-
Anti-interference
In the same environment, GP99 has the strong anti-interference ability and automatic adjustment function to adapt to the surrounding environment without interference.
-
Signal LED indicator
When read the cards, it has an LED display and sound.
-
Loop detector function (optional)
The vehicle can be managed by the pressure sensing function to reduce the malfunction and open the door. The JUTAI GP99 features a grounding capability for use with our vehicle loop detectors. For some special applications, you can connect to the ground loop detector. When the vehicle is pressed to the ground loop coil, the card can start working with the card reader, which makes the whole system highly reliable and safe.
-
IP65 waterproof rating
Our card readers are IP65 rated for perfect work on rainy days, saving you cost without the need for extra accessories.
- JUTAI GP-99 software can be upgraded and the maintenance cost is low.
- Long service life, product warranty is two years.
- Best reading range: 130cm (Install GP99 should avoid direct contact with metal, 10-15cm apart).
- With the JUTAI EM card, the card reading distance is more stable.
Product Description: JUTAI Smart Tag Parking System
Working Principle
- When a vehicle approaches the entry proximity reader loops, the JUTAI smart tag communicates with the reader.
- The reader sends the tag signal data to the controller via the Wiegand interface, allowing the barrier to open if the card ID is valid.
- Upon passing the second loop under the entry barrier, the barrier arm automatically lowers.
- The manager Centre software displays real-time transaction events and enables the export of EXCEL reports.
- At the exit, when the vehicle reaches the exit proximity middle range reader loops, the JUTAI Smart tag communicates with the reader.
- Similar to the entry process, the barrier opens if the card ID is valid, and the barrier arm lowers after the vehicle passes the second loop under the exit barrier.
Experience seamless and efficient parking management with the JUTAI Smart Tag Parking System from Shenzhen Jutai Comm Co., Ltd.
Enhance car parking security with our 125kHz Middle Range EM Proximity Reader. Ideal for RFID access control systems.
