RVP42-7M Motion Sensor Door Opener People Vehicle Differentiation for Industrial Overhead Door

Place of Origin	China
Brand Name	JUTAI
Certification	FDA, E-MARK, CE, ISO, FCC, RoHS, DOT, ASTM, AS/NZS, CCC, GS
Model Number	RVP42-7BW
Minimum Order Quantity	1
Price	Negotiation
Packaging Details	Cartoon
Delivery Time	5-8 days
Payment Terms	T/T,L/C,D/A,D/P,Western Union,Paypal,,Alipay
Supply Ability	1000 pieces per month

Product Details

Output	1 Relays Output.	Power Supply	12-24VADC
Frequency	24.125GHz	Detection Height	2m To 7m
HS Code	9031809090	Package Size	28.00cm * 13.00cm * 10.00cm
Function	Forklift People Distinguish	Waterproof	IP65
Highlight	People Vehicle Differentiation Motion Sensor , Vehicle Differentiation Motion Sensor , Industrial Overhead Door Motion Sensor

Leave a Message

Product Description

RVP42-7M Motion Sensor Door Opener People Vehicle Differentiation for Industrial Overhead Door

Product Overview

The RVP42-7M is a high-performance radar developed by Shenzhen JUTAI COMM CO., LTD., designed for industrial applications including industrial doors, garage doors, cold storage doors, and barriers. This advanced radar detects the presence of people or vehicles and features intelligent identification and filtering of laterally moving vehicles or pedestrians.

Design & Construction

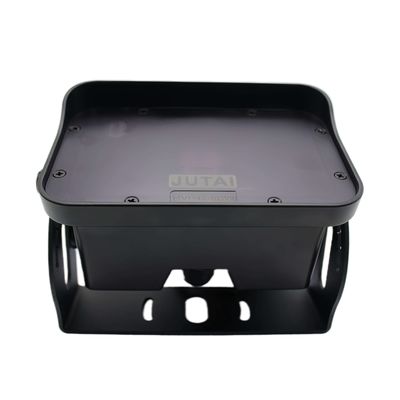

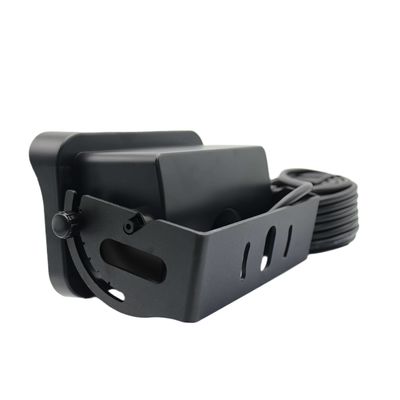

Featuring a durable grey anodized aluminum and polycarbonate housing, the RVP42-7M measures 164mm x 111mm x 94.5mm (including bracket) and weighs 630g. Its compact design ensures suitability for various installation locations.

Installation & Wiring

Power Supply

Working voltage range: 12-36V ADC
Working current: less than 100mA
Power cables: Black for ±12-36V ADC, Red for +12-36V ADC

Relay Output

Default relay output: NO (NC)
Yellow wire: relay 1 COM
Green wire: relay 1 NO
Relay signal output indicated by green light

Installation Requirements

Install firmly on a flat surface to minimize vibration impact
Avoid obstructions such as banners or plants blocking detection area
Ensure no metal objects in front of sensor cover
Do not install close to fluorescent lights
Installation height: 2 meters to 7 meters

Technical Specifications

Parameter	Specification
Emission Frequency	24.125 GHz
Emission Power	<20dBm
Temperature Range	-30°C to +60°C
Air Humidity	0% - 95% relative humidity (no condensation)
Maximum Detection Speed (Vehicle)	25km/h
Cable Length	7m
Protection Level	IP65

Remote Control Operation

Special Notes

Power on by long-pressing the START button on the remote control. Aim the remote at the radar without shaking until the START button stays lit. If the START button flashes, long-press to turn off, remove and reinstall the battery, then repeat the power-on process. The remote control only functions within the first 30 minutes after radar power-on. After 30 minutes, power cycle the radar to restore remote functionality.

Product Advantages

Elevate your industrial door automation with the RVP42-7M Microwave Motion Radar Sensor, offering precision detection, seamless operation, and customizable features tailored to your needs.
