Multi function 4G Parking Lot Controller for LPR System & Barrier Control
| Place of Origin | China |
|---|---|
| Brand Name | JUTAI |
| Model Number | W4G |
| Document | W4G.pdf |
| Minimum Order Quantity | 1 |
| Price | Negotiation |
| Packaging Details | Carton |
| Delivery Time | 7 working days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000/m |
Product Details
| Core Processor | ARM Cortex-M3 High-Speed Processor, Running A Real-Time Embedded OS | Operating Voltage | DC 12V (with Reverse Connection Protection) |
|---|---|---|---|
| Operating Temperature | -40°C To +85°C | Network Communication | Dual-mode: 4G LTE (Integrated Module) & Ethernet (10/100M Adaptive) |
| Network Redundancy Logic | Auto-failover: Ethernet Priority -> Switch To 4G If Ethernet Fails -> Revert To Ethernet Upon Recovery | Uplink/Downlink Speed | Ethernet: Up To 300 KB/s; 4G: Up To 100 KB/s (network Dependent) |
| Relay Output | 2 Channels, Dry Contact Isolated, Load Capacity: 250VAC/10A Or 30VDC/10A | Digital Input (IO) | 6 Channels, Non-isolated, Allowable Voltage Range: 0-5V |
| Serial Interfaces | 2 X RS232, 2 X RS485 (Baud Rate: 4800-115200bps, With Protection) | Wiegand Interface | 2 Channels, Supports Wiegand 26/34 Adaptive |
| Supported Camera Protocols | Direct Photo Push Via Ethernet (Zhixin, Zhenshi); License Plate Data Via RS485 (Zhixin, Zhenshi, Qianyi) | On-board Features | Real-Time Clock (RTC) With Battery Backup, Large-capacity Offline Data Storage, ETC Reader Protocol, Printer Control Logic |
| Development Mode | Cloud Docking (Recommended, Via MQTT SDK) & Local Use (as A Local Hardware Controller) | Physical Dimensions (L*W*H) | 145mm * 105mm * 15mm |
| SIM Card Type | MicroSIM (1.8V/3.3V Adaptive) | Remote Management | Supports Over-The-Air (OTA) Firmware And File Updates |
| Highlight | 4G Parking Lot Controller,LPR Parking Lot Controller,Multi Function Parking Lot Controller |
||
Product Description

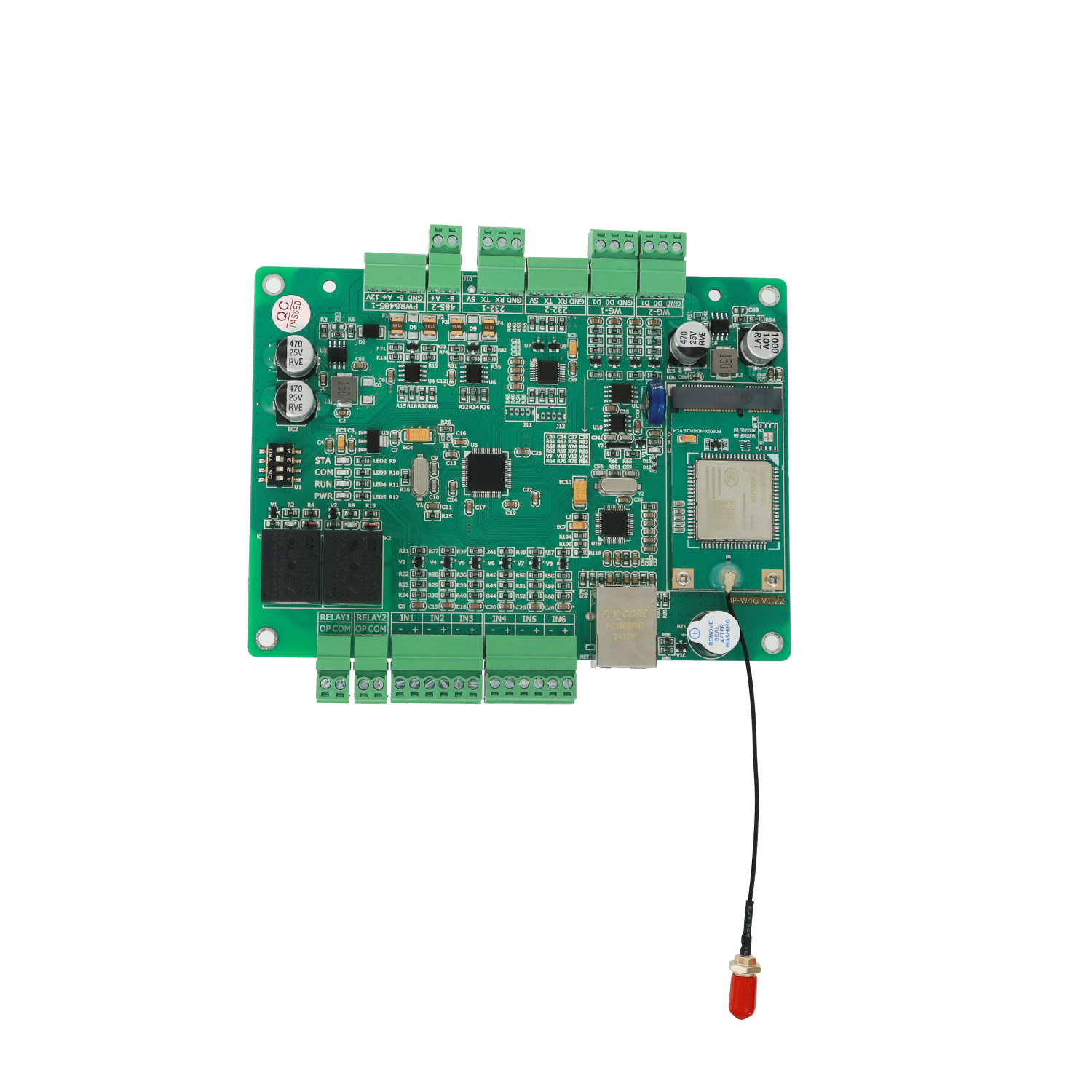

Multi function 4G Parking Lot Controller for LPR System & Barrier Control
The JUTAI W4G 4G Parking Lot Controller is an industrial-grade intelligent core tailored for license plate recognition (LPR) parking systems. It integrates 4G/Ethernet dual-network redundancy, LPR data integration, barrier control, offline operation, and multi-peripheral linkage—solving traditional parking systems relying on physical lines. Equipped with a high-speed ARM Cortex-M3 processor and rich standard interfaces, it seamlessly connects LPR cameras, barriers, loop detectors, and cloud platforms, ensuring 24/7 stable operation of parking lots, communities, and commercial access scenarios.
Core Technical Parameters
| Category | Key Parameters | Specification |
|---|---|---|
| Power & Environmental | Operating Voltage | DC12V (with reverse connection protection) |
| Operating Current | 2A MAX (instantaneous current during 4G data transmission) | |
| Operating Temperature | -40°C ~ +85°C (relative humidity <80%, no frost) | |
| Dimensions (L × W × H) | 145mm × 105mm × 15mm | |
| Mounting Hole Spacing | 135mm × 95mm | |
| Dual-Network Communication | 4G Module | Built-in, supports MicroSIM card (1.8/3.3V adaptive), max data rate 100KByte/S |
| Ethernet Interface | 10/100M adaptive, isolated, max data rate 300KByte/S | |
| Network Logic | Auto-switch: Priority Ethernet, failover to 4G on failure, revert after recovery | |
| LPR & Peripheral Integration | Compatible Cameras | Zhixin, Zhenshi (Ethernet photo push); Zhixin, Zhenshi, Qianyi (RS485 data) |
| Control Interfaces | 2x RS232, 2x RS485 (4800-115200bps, with ESD protection) | |
| Access Control Interfaces | 2x Wiegand (26/34 bit adaptive) | |
| IO Input/Output | 6x IO input (0-5V); 2x relay output (250VAC 10A / 30VDC 10A) | |
| Core Functions | Offline Storage | Saves whitelists, access logs, and up to 64 images (≤64KB each) |
| Supported Protocols | MQTT (cloud docking), ETC reader protocol, printer control protocol | |
| Development Modes | Cloud docking (SDK + MQTT); Local use (PC software control) |
Key Functional Advantages
1. Dual-Network Redundancy & Uninterrupted Operation
- No line dependency: 4G + Ethernet dual-network design, automatically switching to 4G when physical lines are damaged or Ethernet fails
- Cost optimization: Reverts to Ethernet after network recovery, minimizing 4G data consumption and operational costs
- Stable signal coverage: Uses mobile operator networks, ensuring normal operation as long as mobile signals are available
2. Seamless LPR System Integration
- Direct camera integration: Supports Ethernet photo push from Zhixin/Zhenshi cameras and RS485 license plate data from three mainstream brands
- Fast data transmission: Ethernet uploads 100KB photos in ~0.5 seconds, 4G in ~1.5 seconds, ensuring real-time LPR processing
- Fake plate detection: Cooperates with supported cameras to identify fake/return/stay plates, enhancing parking security
3. Offline Operation & Data Integrity
- Independent work capability: Built-in RTC (power failure backup) and large-capacity memory, operating with pre-stored whitelists offline
- Offline access control: Automatically allows valid whitelist vehicles to pass, denies temporary/expired vehicles, and saves all records
- Automatic sync: Uploads offline logs, images, and access records to the cloud immediately after reconnection, no data loss
4. Comprehensive Barrier & Peripheral Control
- Barrier management: 2 high-load relays control barrier opening/closing/holding open, with LED delay control (1-30 seconds)
- Peripheral linkage: Reads loop detector signals via IO inputs to sense vehicle presence; connects card readers via Wiegand for dual access control
- Extended functions: Supports ticket printers, ETC readers, and LCD displays, adapting to diverse parking lot configurations
5. Cloud Integration & Intelligent Management
- MQTT protocol docking: Standard JSON format, supporting cloud control of barriers, display content, voice broadcasts, and whitelist updates
- Real-time monitoring: Periodic heartbeat reports (1 minute default) include signal strength, temperature, data usage, and network type
- Whitelist management: Supports adding/modifying/deleting whitelists (max 16000 entries), with batch operation to extend flash lifespan
Application Scenarios
- Smart Parking Lots: Core controller for entry/exit stations, integrating LPR recognition, barrier control, and payment system linkage. Offline operation ensures uninterrupted service during network outages
- Residential Communities: Manages resident whitelists and visitor temporary access, linking with community access control systems for secure vehicle entry
- Commercial & Retail Parking: Facilitates paid parking, monthly pass management, and QR code payment integration. Dual-network redundancy guarantees peak-hour reliability
- Industrial Parks & Logistics Centers: Controls truck and authorized personnel access, logs entry/exit times, and integrates with warehouse management systems
- Highway Toll Stations: Supports ETC protocol integration, with dual-network stability ensuring critical communication in toll collection scenarios
Why Choose W4G 4G Parking Lot Controller?
- LPR-Specific Optimization: Seamless integration with mainstream LPR cameras, reducing integration complexity for system integrators
- Zero Downtime Guarantee: Dual-network auto-failover eliminates line-dependent outages, protecting parking lot revenue and security
- Robust Offline Capability: Independent operation with data storage ensures normal access control even without network connectivity
- Industrial-Grade Durability: Extreme temperature resistance (-40°C ~ +85°C) and interface protection for harsh outdoor environments
- Scalable & Future-Proof: Open MQTT protocol and rich interfaces support cloud platform integration and functional expansion
