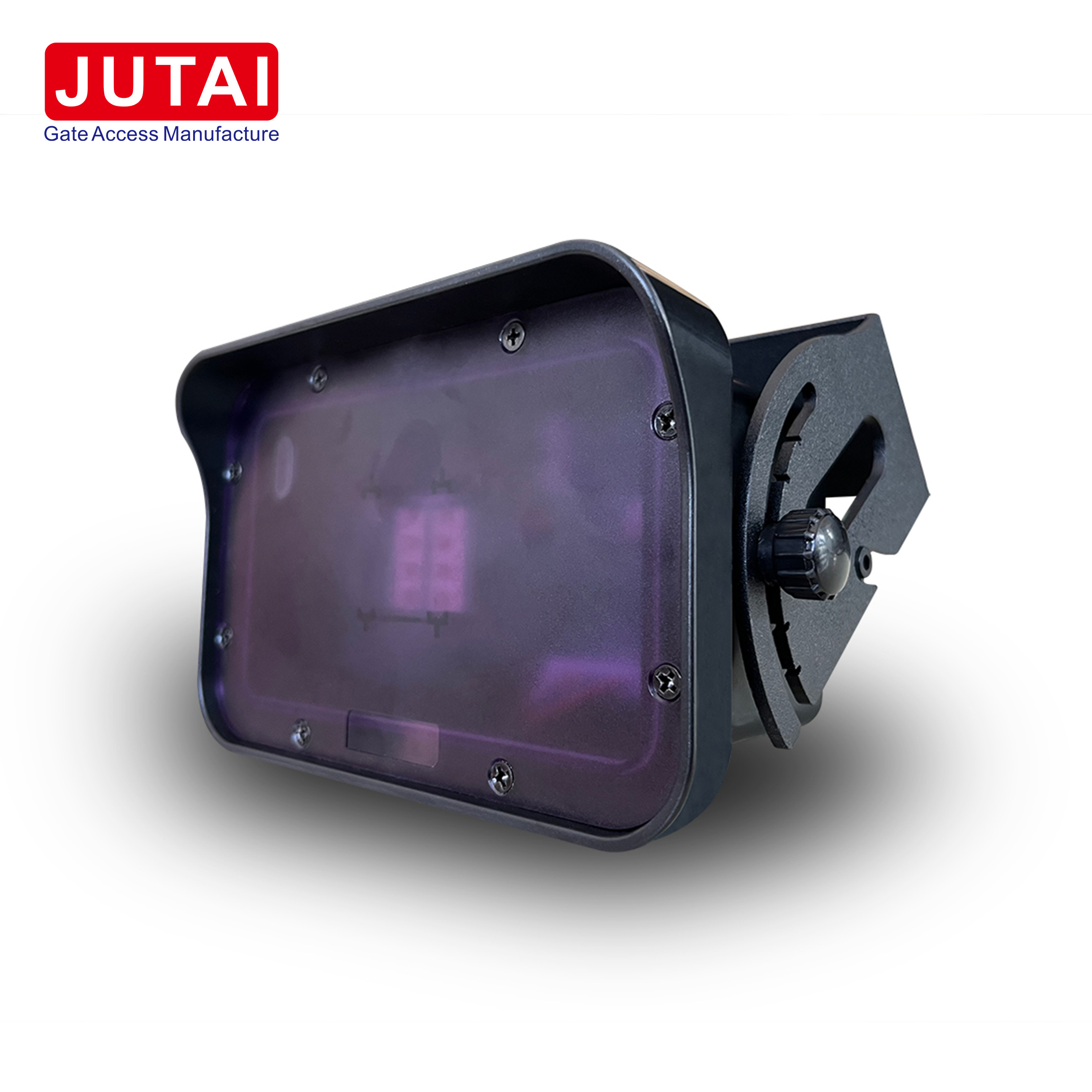

24GHz Microwave Motion Sensor Dual Relay

Place of Origin China
Brand Name JUTAI
Certification FDA, E-MARK, CE, ISO, FCC, RoHS, DOT, ASTM, AS/NZS, CCC, GS
Model Number RVP42-9ME
Minimum Order Quantity 1
Price Negotiation
Packaging Details Cartoon
Delivery Time 5-8 days
Payment Terms T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay
Supply Ability 1000 pieces per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output 2 Relays Output. Max.48 VAC/DC. Max.Current 1A Power Supply 12-28VAC, 12-36VDC
Frequency 24.125GHz Detection Height 2m To 9m
HS Code 9031809090 Package Size 28.00cm * 13.00cm * 10.00cm
Highlight

24GHz Microwave Motion Sensor

,

Microwave Motion Sensor Dual Relay

,

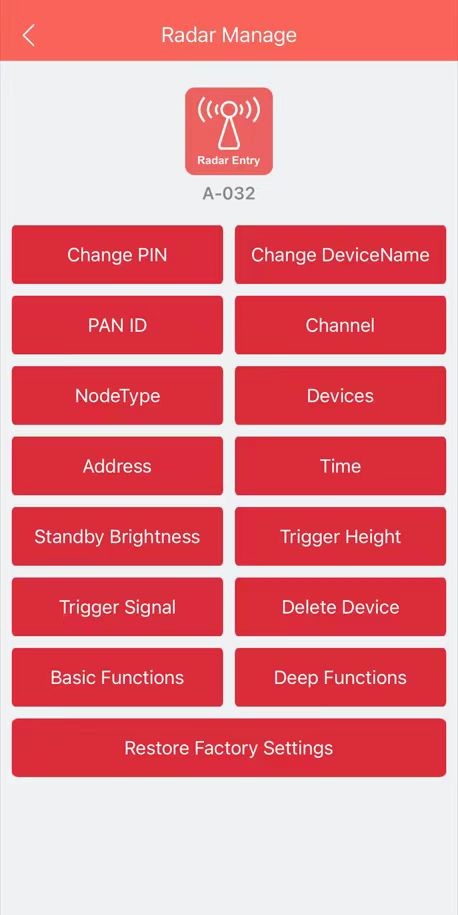

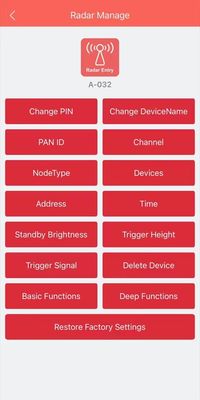

Bluetooth APP Microwave Motion Sensor

Leave a Message
Product Description

24GHz Microwave Motion Sensor Dual Relay 9m Install Height Remote Bluetooth APP24GHz Microwave Motion Sensor Dual Relay 0

24GHz Microwave Motion Sensor Dual Relay 1



Our Advantages





Model: RP42-9ME/RVP42-9BW

The RP42-9ME/RVP42-9BW represents a pinnacle in motion radar detector technology, meticulously crafted to excel in detecting both vehicles and human presence. Tailored for a spectrum of industrial applications including industrial doors, garage doors, cold storage doors, road gates, and more, its dual relays for vehicle and pedestrian detection offer unparalleled versatility. Moreover, the RVP12-9ME/RVP42-9BW variant elevates functionality with recognition and filtering capabilities for horizontally moving vehicles or pedestrians.

Detection Area

Adjustable Detection Zones:

  • Narrow or Wide Detection Areas: Adaptability for all installation types.
  • Narrow Setting: Simplified configuration with the narrow lens attachment.
  • Position Adjustment: Effortless rotation and tilt adjustment for diverse application scenarios.
  • Sensitivity Adjustment: Refinement of detection area sensitivity via the potentiometer for precise customization.

Dual Relay Outputs

Fully Customizable Radar Motion Sensor:

  • Vehicle-Detection Relay: Engages upon vehicle detection.
  • Person-Detection Relay: Activates in response to human presence.
  • Combined Mode: Simultaneous activation of vehicle and person detection relays.
  • Customizable Settings: Exclusive configuration for vehicle-detection mode as needed.

Direction Recognition

Configurable Detection Directions:

  • Forward Motion: Activation upon approach to the sensor.
  • Reverse Motion: Triggering as motion moves away from the sensor.
  • Bidirectional Sensing: Detection of motion in both forward and backward directions.

Energy Savings

Efficiency and Pest Control:

  • Selective Activation: Energy-efficient activation solely upon approaching traffic.
  • Automatic Door Control: Ensuring open doors during usage and automatic closure upon traffic departure.

Seamless Operation

Enhanced Workflow Efficiency:

  • Hands-Free Operation: Elimination of manual intervention for door operation.
  • Flexible Installation: Suited for both new installations and retrofitting on dock and pedestrian doors.
  • Customizable Detection Modes: Filters for pedestrian, forklift, and parallel traffic detection.
  • Traffic Distinction: Discerns between approaching and departing vehicles.

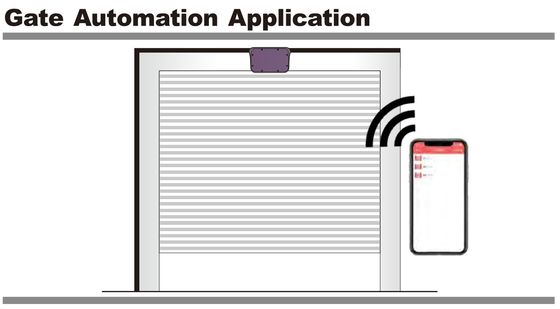

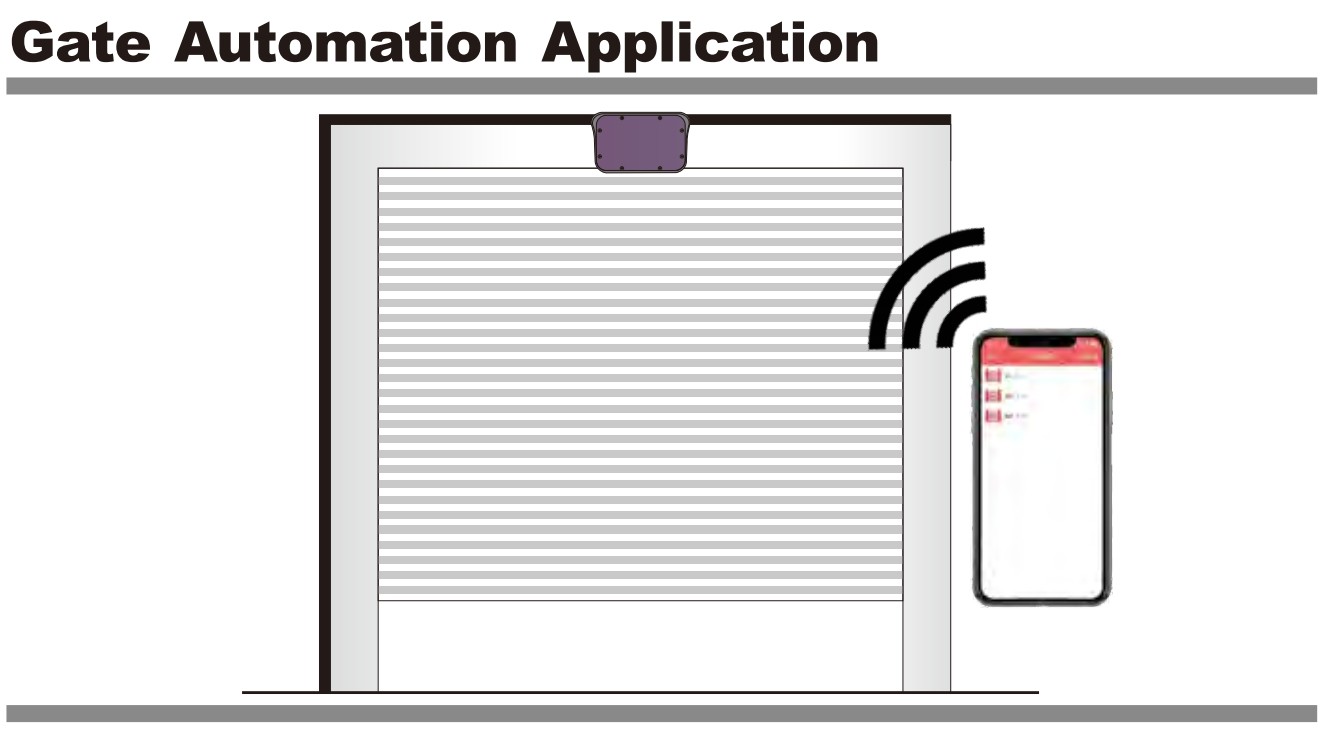

JUTAI Opening Sensor for Industrial Doors

Versatile Applications:

  • Doppler Radar Technology: Utilizing advanced Doppler radar for industrial door sensing.
  • Customizable Sensing Area: Tailoring sensing area for specific function activation.
  • Dual-Channel Relay: Dedicated channels for vehicle and human detection respectively.



Product Parameters



Feature Details
Application Technology Doppler radar
Transmission Frequency 24.125GHz
Transmission Power <20dBm
Detection Height 2.0m~9.0m
Angle Adjustment 0°-90° longitudinal
Detection Speed 5cm/s~25km/s
Detection Area (30° Angle) 3.0m x 3.5m @ height: 2m / 6.5m x 8.5m @ height: 9m
Operation Current <100mA
Power Frequency 50Hz
Temperature Range -30 ºC~+60 ºC
Relative Humidity 0% to 95%, no condensation
Protection Grade IP65
Relay Output 24VDC @ 1A / 125VAC @ 0.5A

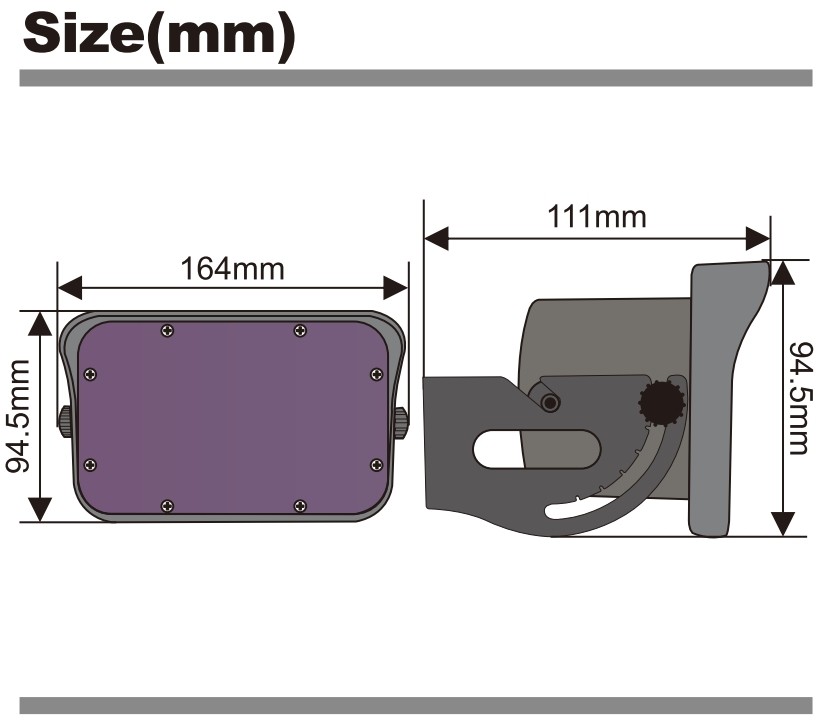

External Dimensions 164mm x 111mm x 94.5mm

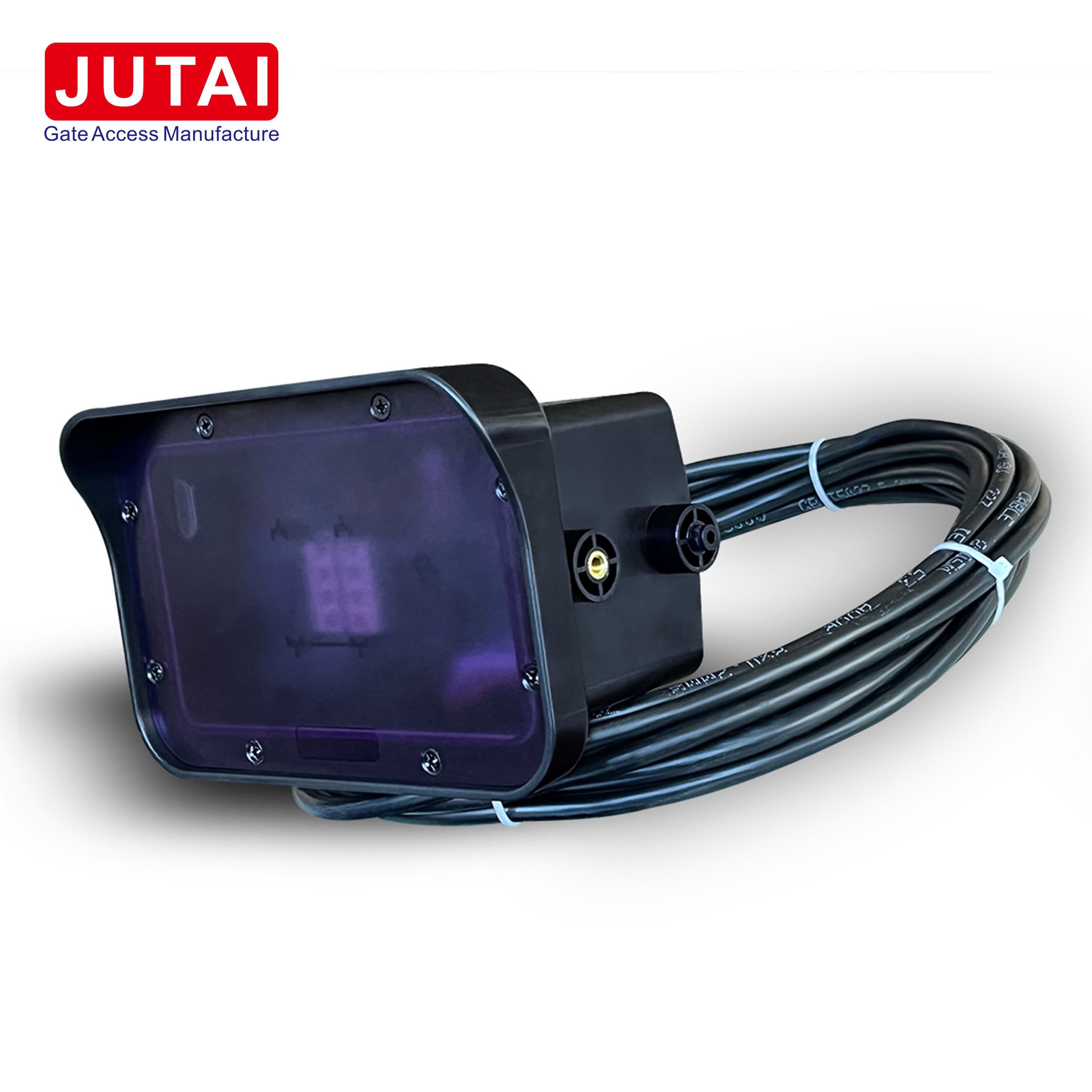

Cable Length 7m
Sensor Weight 650g
Operation Voltage 12~36VADC





The RP42-9ME/RVP42-9MG radar sensor delivers a versatile solution for industrial door applications, boasting high customization, reliable detection capabilities, and energy-efficient operation.
